5-BT-81ZS1

VFD Description
Model5-BT-81ZS1
ManufacturerFutaba 1)
Recovered fromSharp RT-20H 2)
Character typeNumeric
Characters4+
Colour
Driver IC
Connectorpins
Num Pins33
Pin spacing0.1”

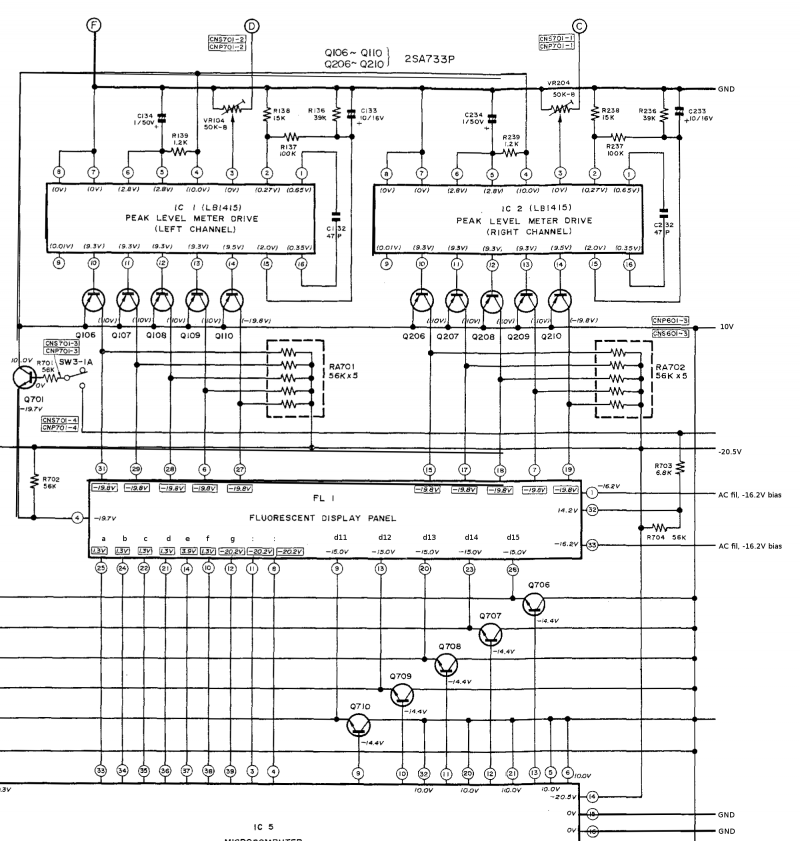

  • 5-BT-81ZS1 VFD schematic:

Examples :

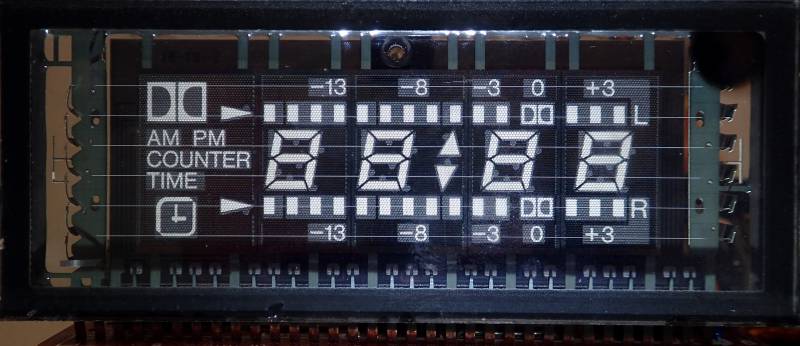

5-BT-81ZS1

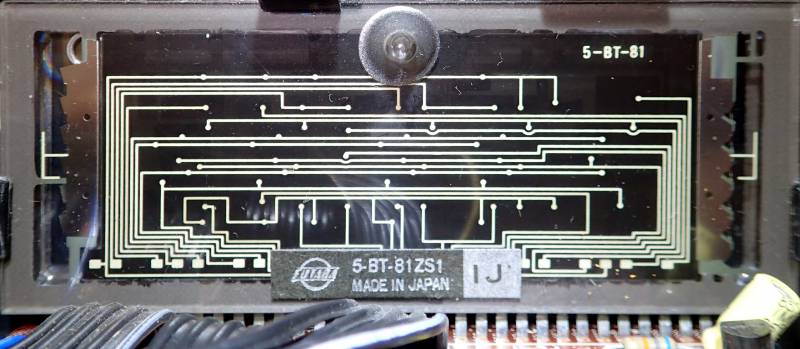

5-BT-81ZS1

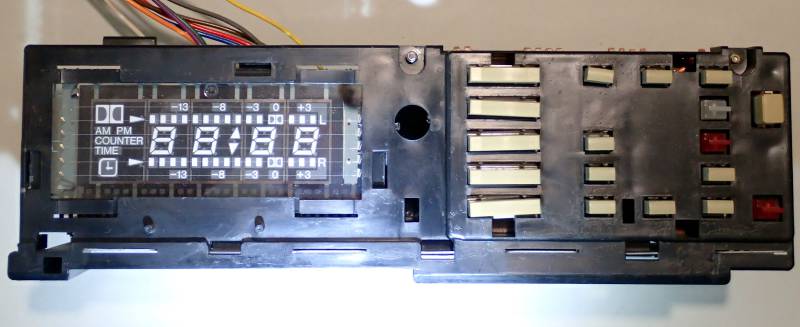

5-BT-81ZS1

5-BT-81ZS1

1) https://web.archive.org/web/19980212045736/http://futaba-na.com:80/ecd.html
2) sharp_rt20.pdf
