VFD module data
A2BB00000185
FV870ND
DIG601
5-BT-81ZS1
11-BT-189GNK
DVR-510H-S
20U26115TAN
VNP1956-B

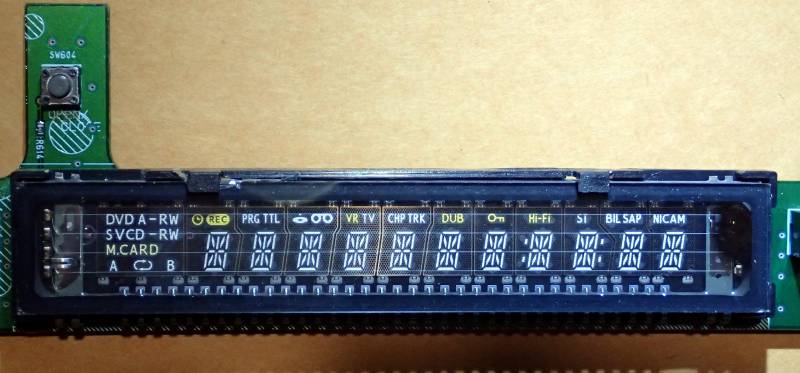

VFD Description
Model
DIG601
Manufacturer

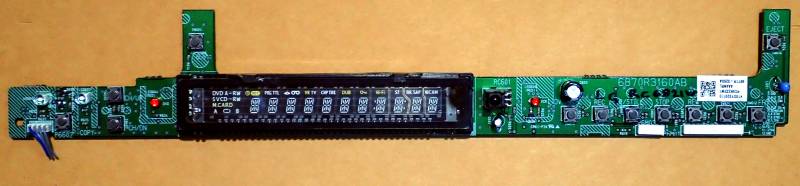

Recovered from
LG RC6821W
1)
Character type
Alphanumeric
Characters
11
Colour
Driver IC
PT6315
Connector
Num Pins
12
Pin spacing
0.08
Datasheets
PT6315
Vacuum Fluorescent Display Controller.
PT6315
Vacuum Fluorescent Display Controller application note.
Examples :
1)

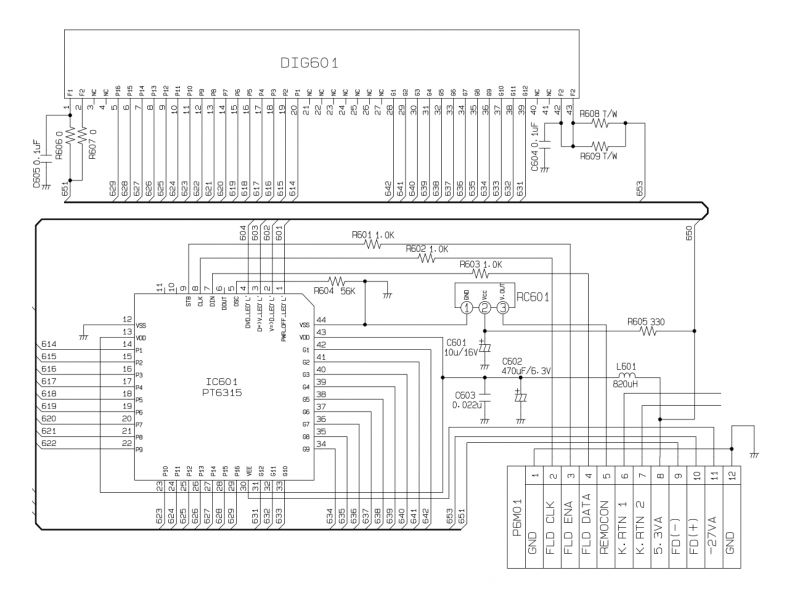

lg_rc6821w_service_manual.pdf
