CDR-C3G servos

Servo Description
ModelCDR-C3G servos
ManufacturerTorisan
Recovered fromTorisan CDR-C3G
Voltage5V
ModulationAnalog
Pulse width
Pulse cycle
Rotational range
Torque
Speed
Rotation
Motor typeFF050SH
Gear materialnylon
Spline count T
Connector typepins
Weight gm
Dimensions (l*w*h) mm


Examples

Extracted CDR-C3G servos

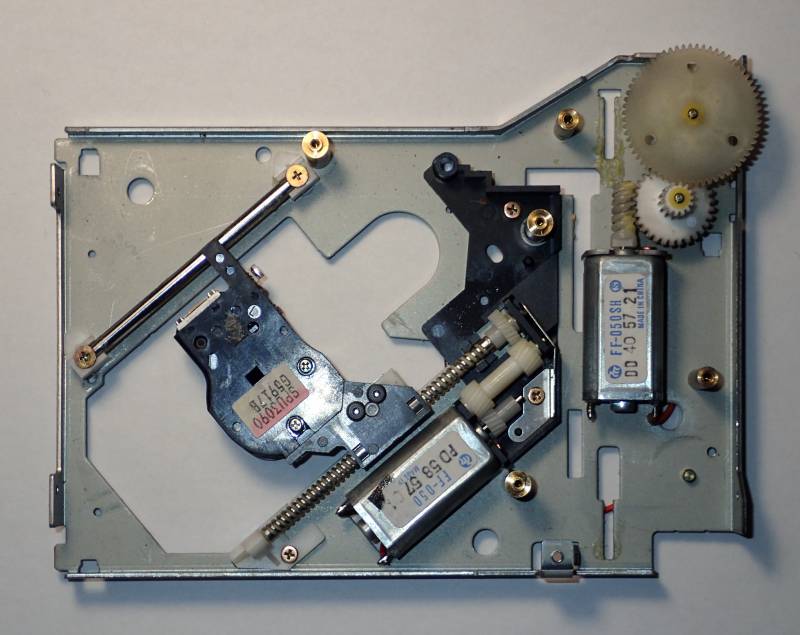

CDR-C3G stripped down mechanism, top

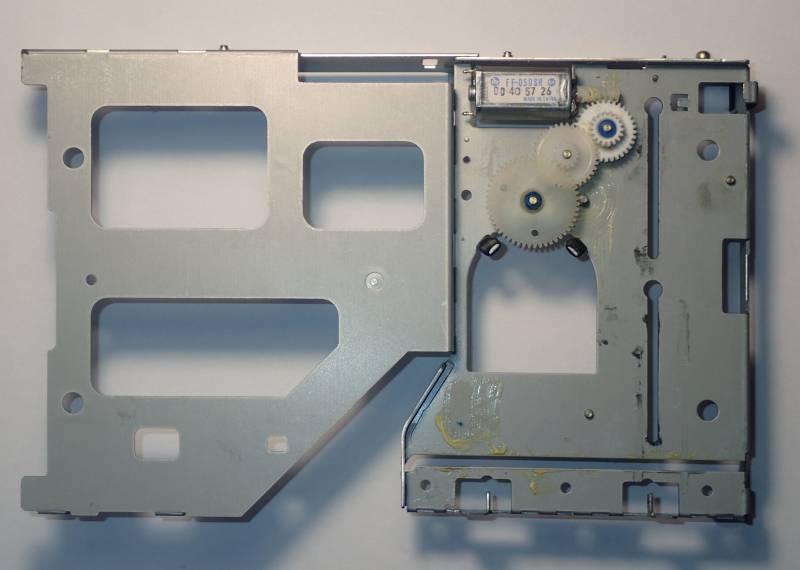

CDR-C3G stripped down mechanism, bottom

CDR-C3G Eject top

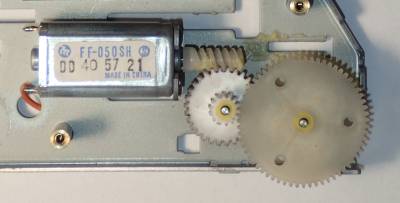

CDR-C3G Eject servo

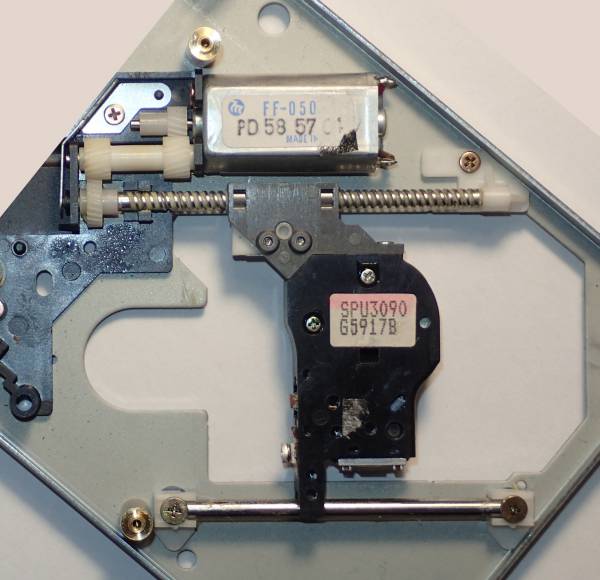

CDR-C3G Head position servo

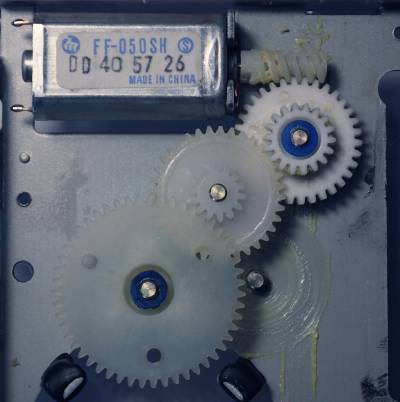

CDR-C3G Disc change servo
