Omron R2DG-38

Servo Description
ModelR2DG-38
ManufacturerOmron
Recovered fromApple Mac 3.5” floppy disk drive, MP-F75W-11G
Voltage2.5V - 5V
Modulation-
Pulse width-
Pulse cycle-
Rotational range180º
Torque
Speed
Rotation
Motor type
Gear materialNylon
Spline count
Connector type
Weight25 gm
Dimensions (l*w*h)

Takes 40mA unloaded in unmodified condition (ie resistor in place).

Examples

From Apple 3,5 inch floppy drive (disk eject motor) :

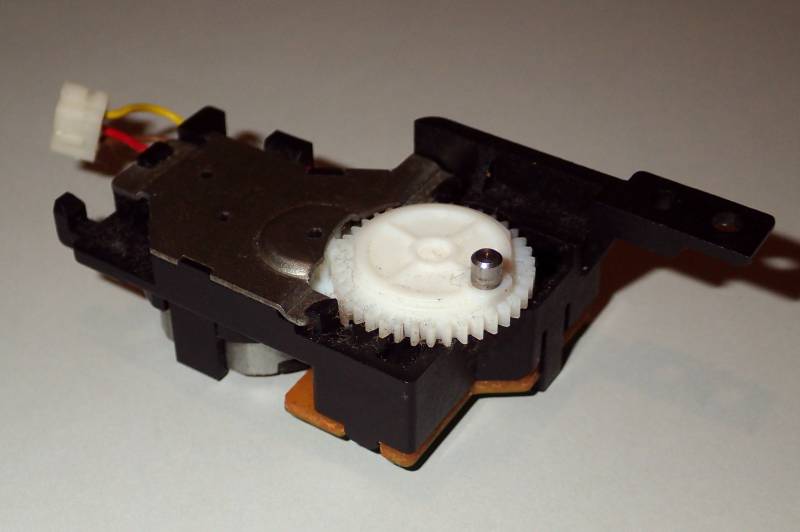

Omron R2DG-38 overview

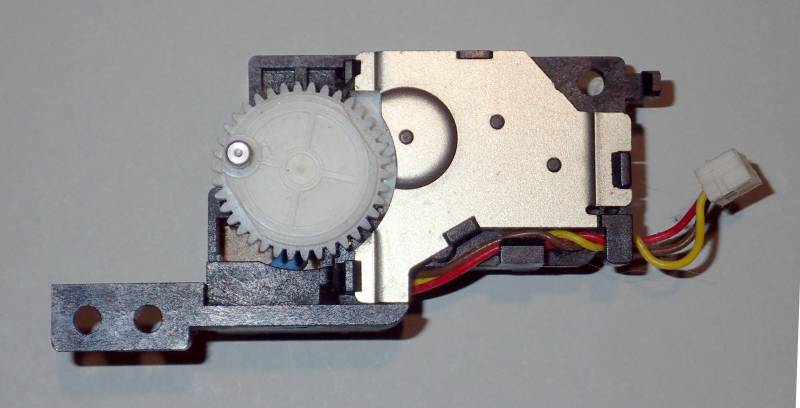

Omron R2DG-38 top

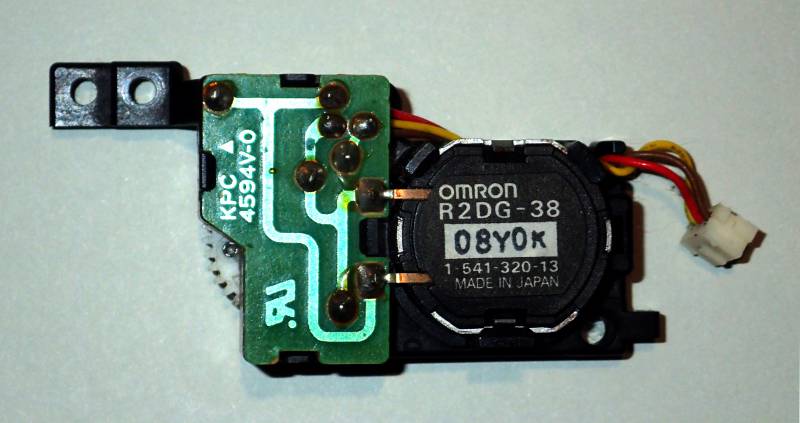

Omron R2DG-38 bottom

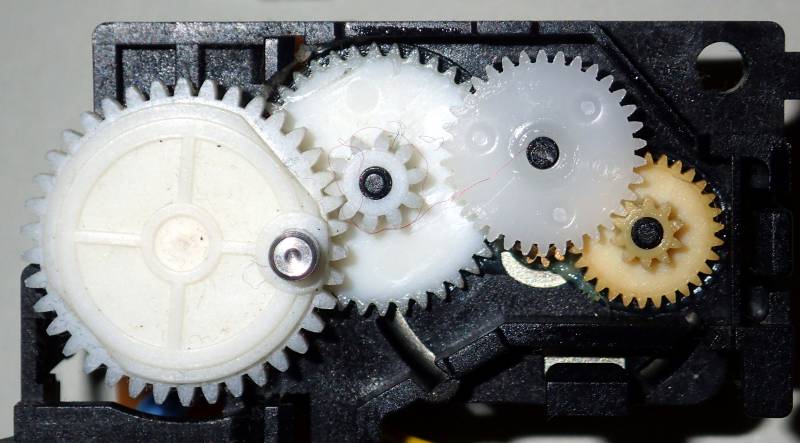

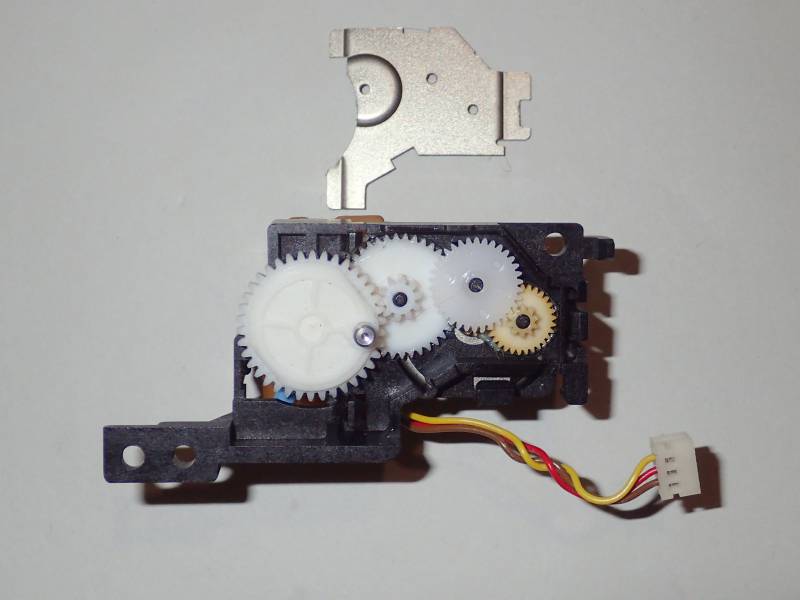

Omron R2DG-38 gear cover removed

Omron R2DG-38 gear cover removed

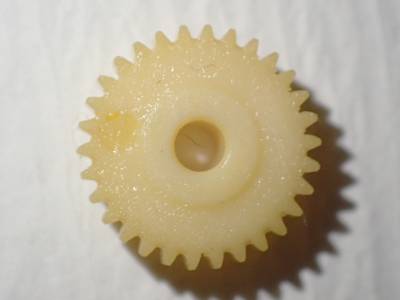

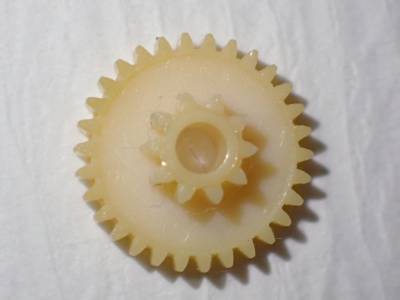

Omron R2DG-38 small gear topOmron R2DG-38 small gear bottom

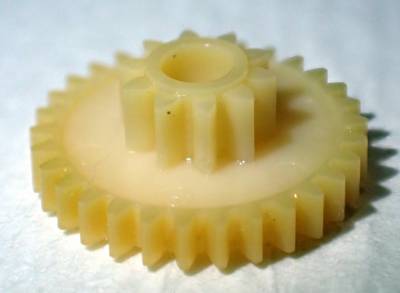

Omron R2DG-38 small gear overview

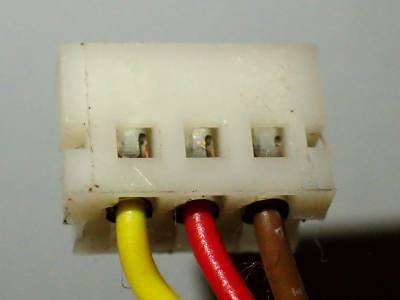

Omron R2DG-38 connector

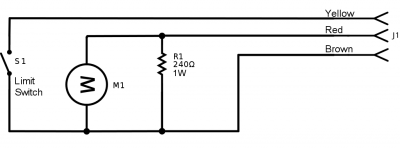

Omron R2DG-38 circuit
