| Servo Description | |
|---|---|
| Model | R2DG-B01-30 |
| Manufacturer | Omron |
| Recovered from | Apple Mac 3.5” floppy disk drive , MF355F-592MA |
| Voltage | 2.5V - 5V |
| Modulation | - |
| Pulse width | - |
| Pulse cycle | - |
| Rotational range | 360º |
| Torque | |
| Speed | |
| Rotation | |
| Motor type | |
| Gear material | Nylon |
| Spline count | |
| Connector type | |
| Weight | 9 gm |
| Dimensions (l*w*h) | |
Takes 100mA unloaded at 5V, 85mA at 3.3V.
The servo is wired with three leads, motor, common, switch. The arm can rotate continuously, forward or reverse. The switch is closed except for a small band where the rotor knob is at the edge of the servo. But the contacts do seem to suffer from some bouncing as the rotator moves, so false signals may result.
Examples

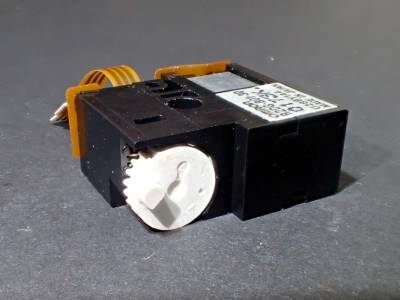

| From Apple 3.5 inch floppy drive (disk eject motor) : |
|---|
 | |||
 |  |  |  |
 |
