| Servo Description | |
|---|---|
| Model | SG90/RS001B |
| Manufacturer | probably clone of TowerPro or Dagu product |
| Recovered from | |
| Voltage | 4.8 - 6.0V |
| Modulation | Analog |
| Pulse width | 500-2400 µs |
| Pulse cycle | 20 ms (50 hz) |
| Rotational range | 180° |
| Torque | 4.8V: 1.20 kg/cm |
| 6.0V: 1.6kg/cm | |
| Speed | 4.8V: 0.12 sec/60° |
| 6.0V: 0.10 sec/60° | |
| Rotation | |
| Motor type | |
| Gear material | nylon |
| Spline count | 21 T (2f) |

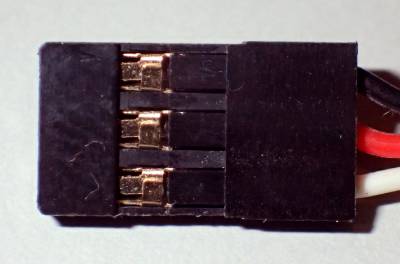

| Connector type | JR |
| Weight | 9 gm |
| Dimensions (l*w*h) | 32 x 12 x 29 mm |
| Pinout | |
|---|---|
| Colour | Function |
| black | GND |
| red | +5V |
| white | PWM |
Examples

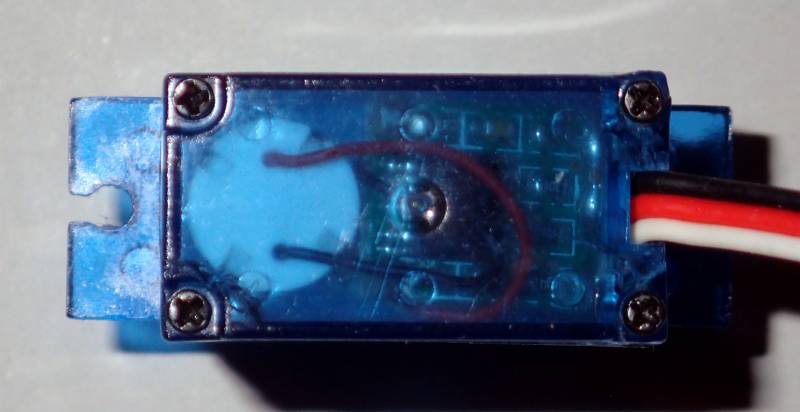

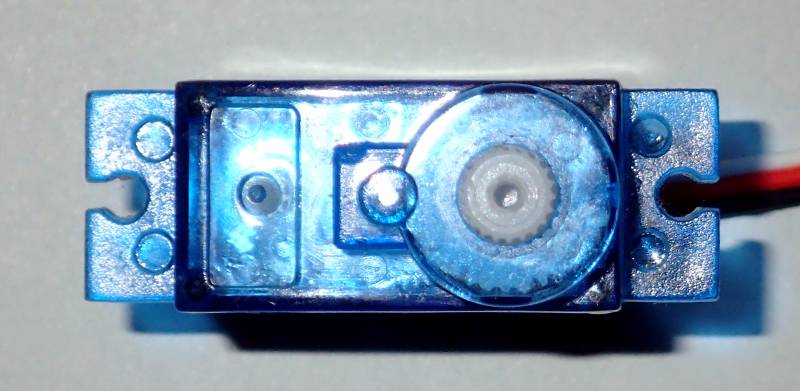

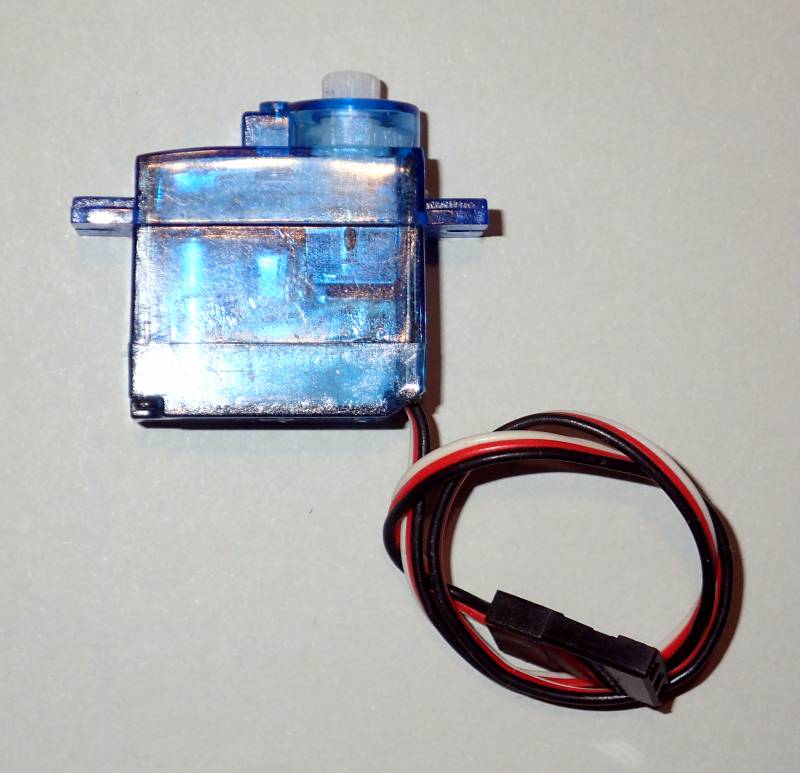

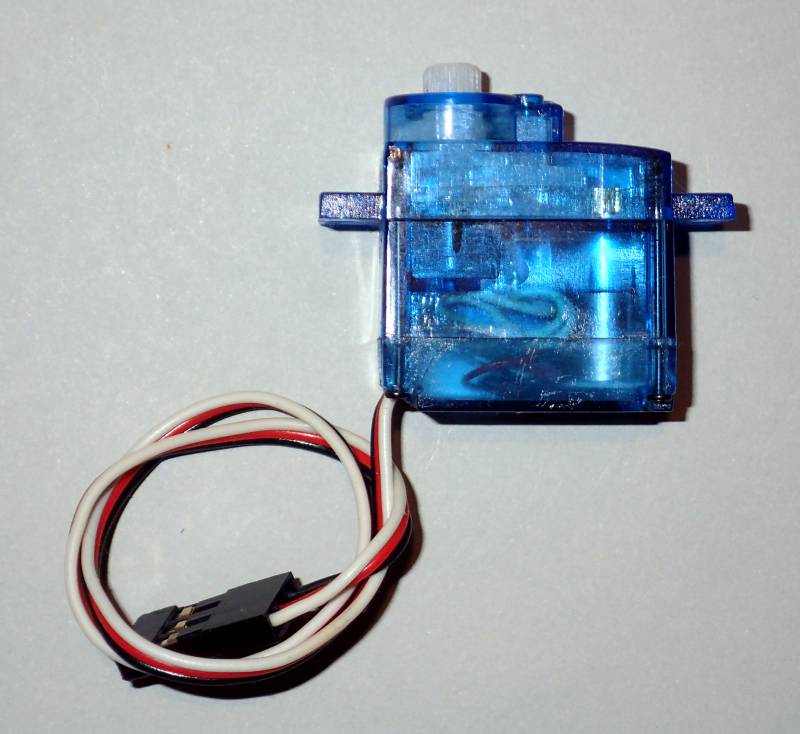

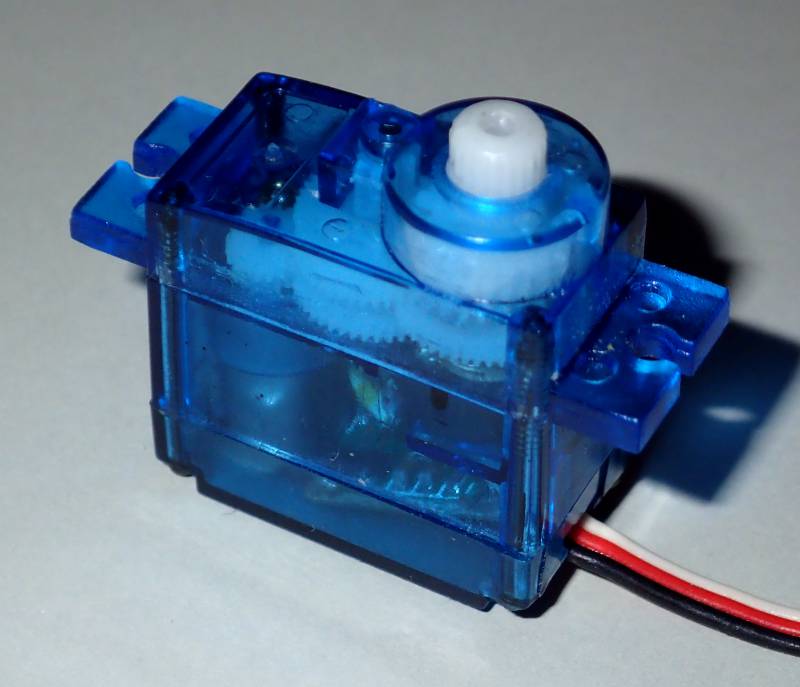

| SG90/RS001B clone |
|---|
