Uniden XDECT 7055


Uniden XDECT 7055 overview

Overview


Hardware description

Components

  • LCD, 3 rows of 16 characters plus 2 digits plus symbols, 10 pin SPI type interface
  • Atmel AT45DB041D 4-megabit 2.5-volt or 2.7-volt DataFlash

Examples

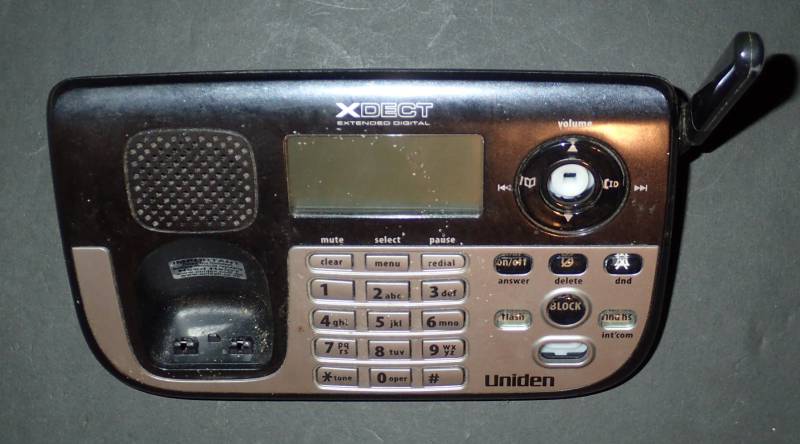

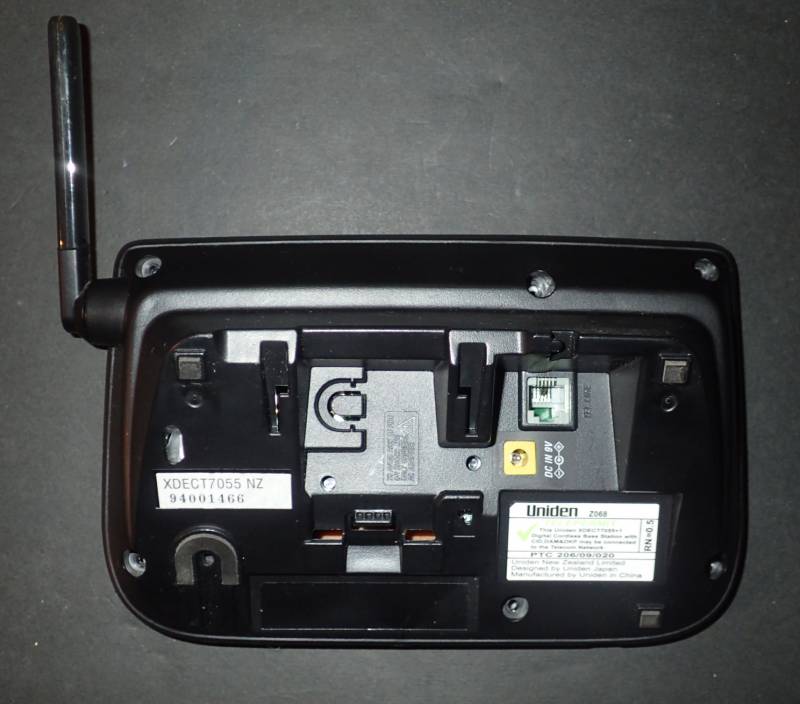

XDECT 7055 front XDECT 7055 back

Tear down

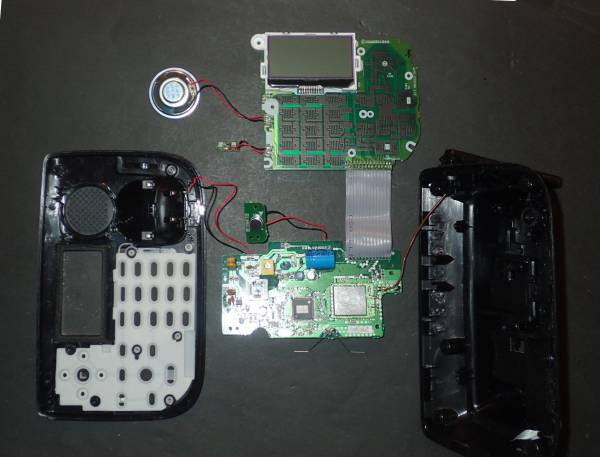

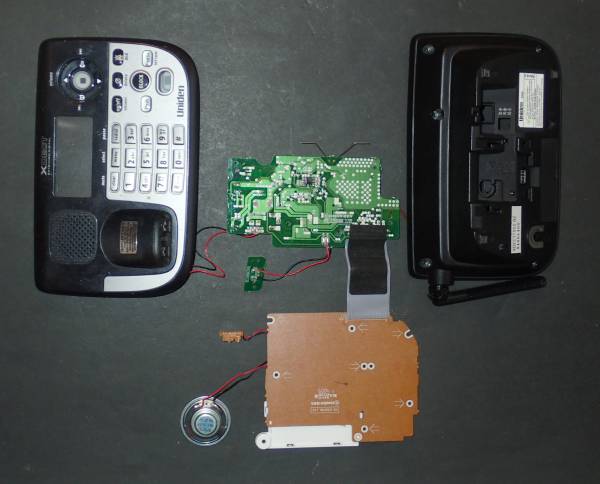

XDECT 7055 exploded XDECT 7055 exploded

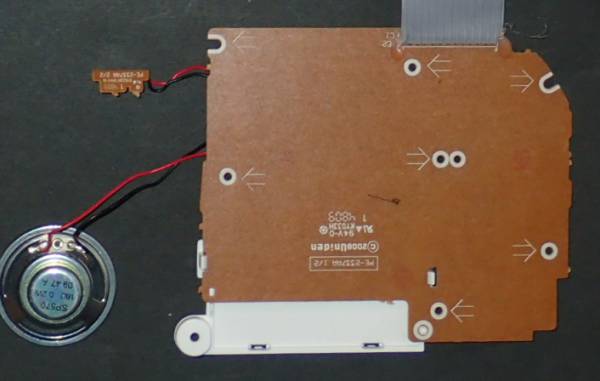

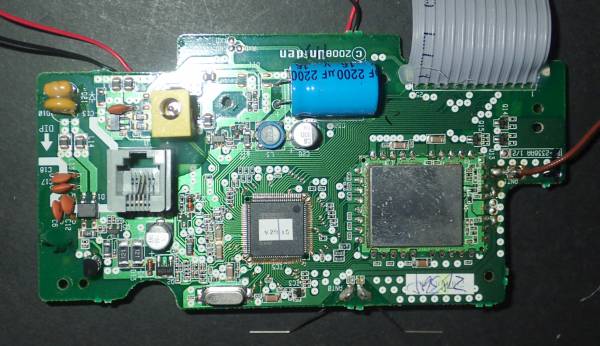

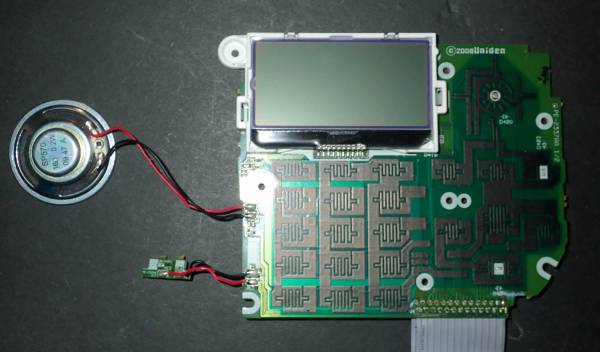

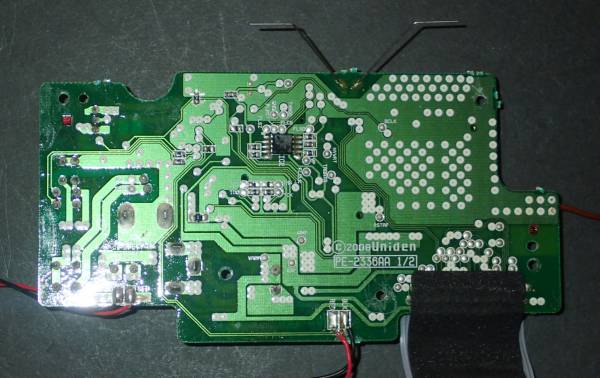

XDECT 7055 PCB front XDECT 7055 PCB back

XDECT 7055 PCB front XDECT 7055 PCB back
