optiPoint 500

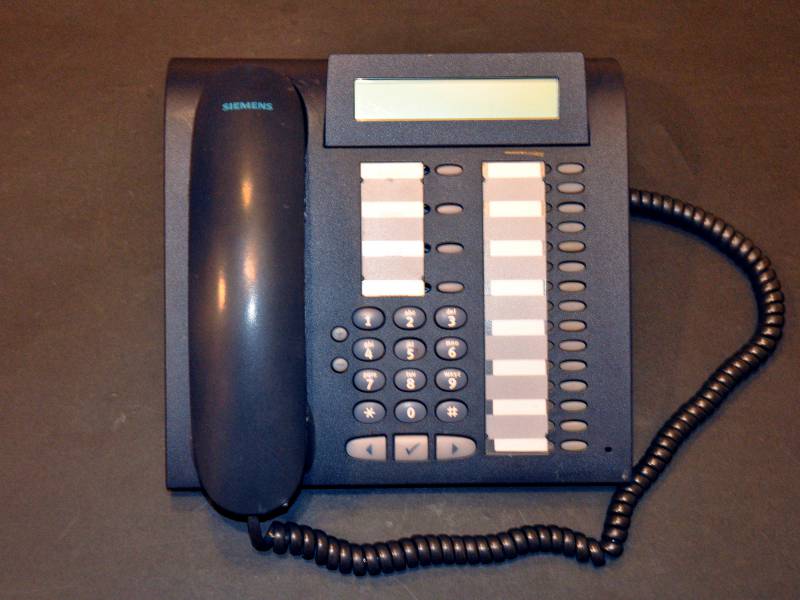

optiPoint 500 overview

Overview

The Siemens optiPoint 500 phone comes in a number of models, here are some details of the ”economy” and ”advance” models.

Hardware Description

Components

  • LCD, economy 2 rows of 24 alphanumeric characters.
  • LCD, advance 2 rows of 24 alphanumeric characters with amber LCD backlight.
  • Macronix 29LV400BMC 4 Megabit (512 K x 8-Bit/256 K x 16-Bit) CMOS 3.0 Volt-only Flash Memory
  • Infineon INCA-P, PSB 21493 - Infineon Codec with UPN Transceiver and Embedded Microcontroller for PBX phones

It uses a 24 character by 2 line LCD display.

Examples

optiPoint 500

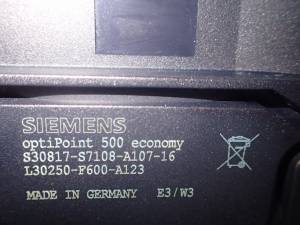

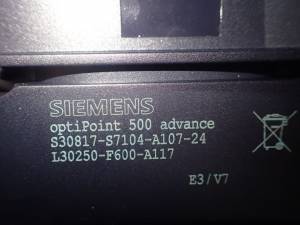

optiPoint 500 economy label optiPoint 500 advance label

Tear down

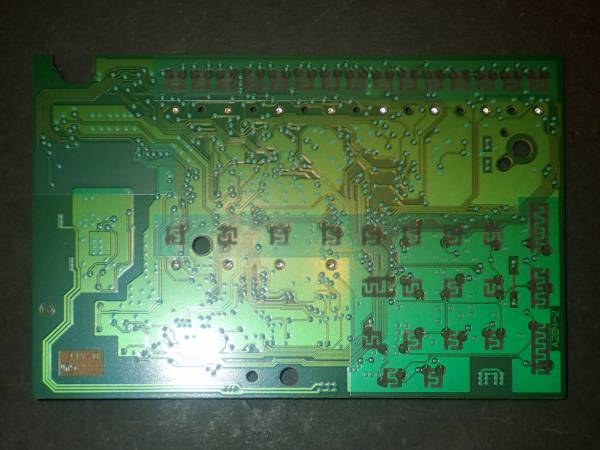

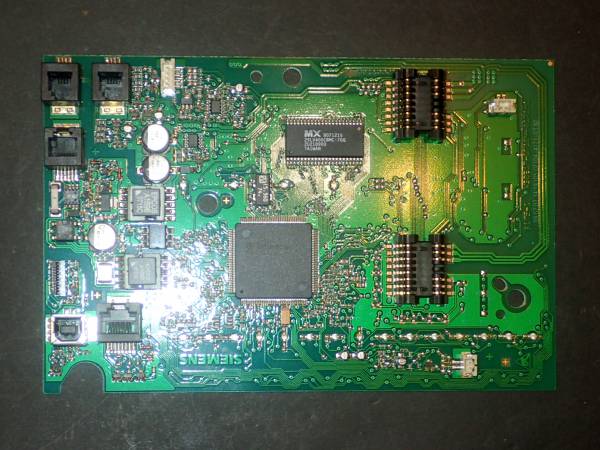

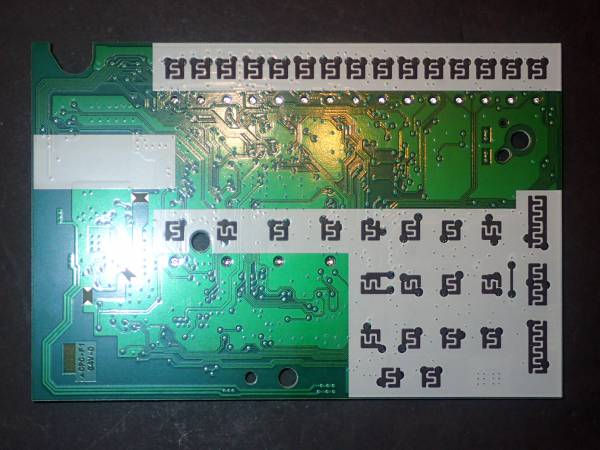

optiPoint 500 economy PCB front optiPoint 500 economy PCB back

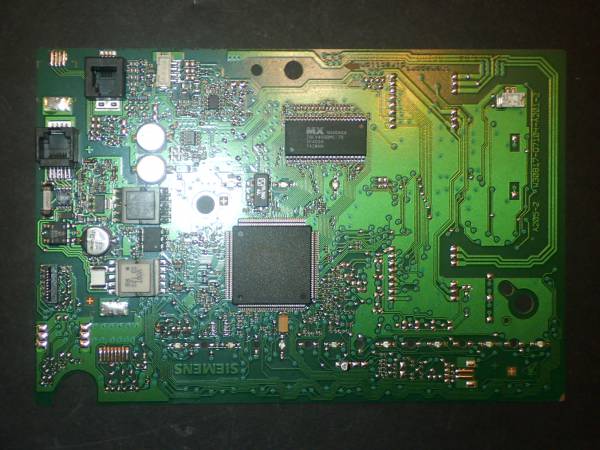

optiPoint 500 advance PCB front optiPoint 500 advance PCB back

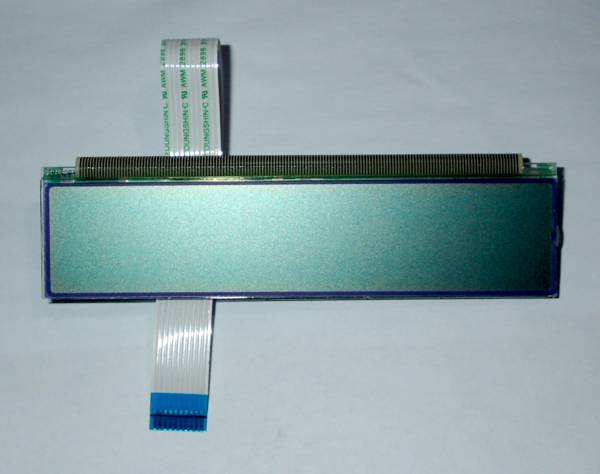

optiPoint 500 LCD

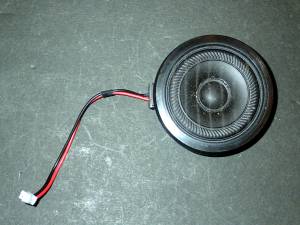

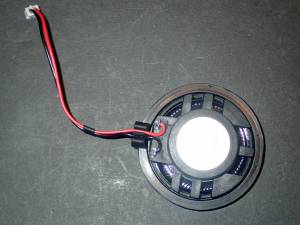

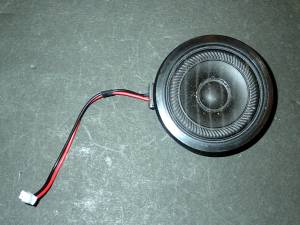

optiPoint 500 speaker top optiPoint 500 speaker bottom

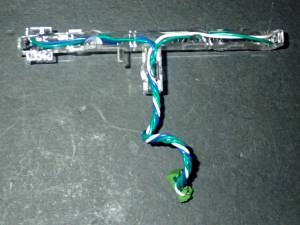

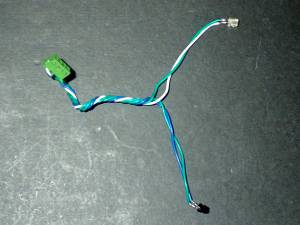

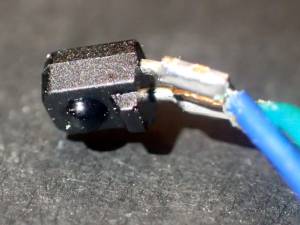

optiPoint 500 cradle sensor optiPoint 500 cradle sensor wires

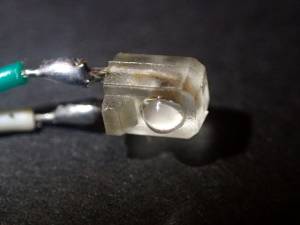

optiPoint 500 cradle sensor transmitter optiPoint 500 cradle sensor receiver

References and Additional Resources



If any referenced page no longer exists, try looking for its URL on http://archive.org.
