HP 4110


HP 4110 overview

Overview

This phone runs a version of Microsoft Embedded CE 6.0, “Microsoft Lync Phone Edition”. It can be powered by 5V, 1.5A plug pak, or Class 2 PoE at 48V.

Hardware description

Components

  • 3.5-inch TFT colour LCD, 320 pixels by 240 pixels graphic display, with backlight.
  • Nanya NT5TU128M8CE-AC 128×8 800MHz, 1.8V DRAM Memory
  • Samsung K9F2G08U0C 2Gb NAND Flash
  • Texas Instruments TNETV1072ZDW
  • Marvell 88EC046-TFE1
  • Texas Instruments TPS65241A0

Examples

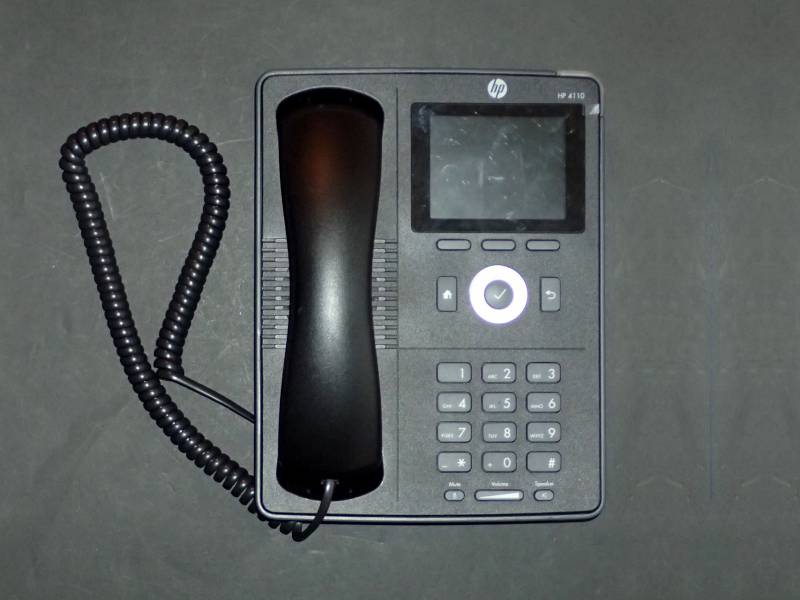

HP 4110 top

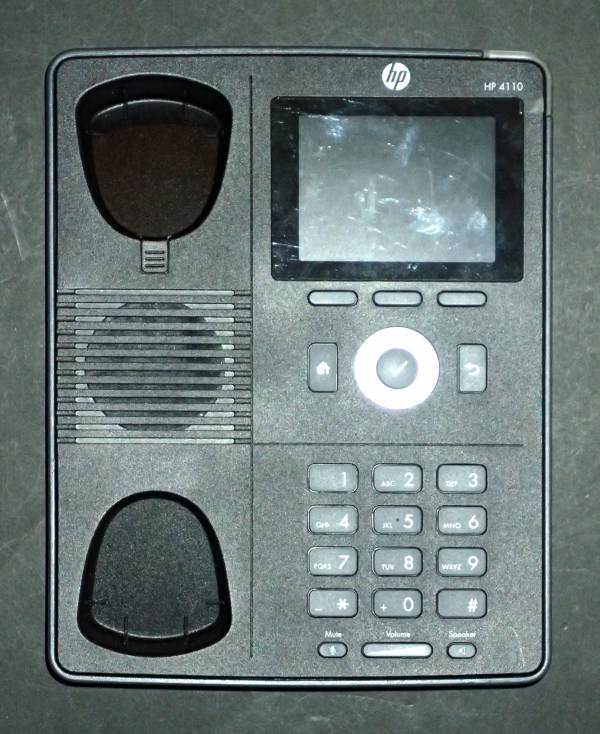

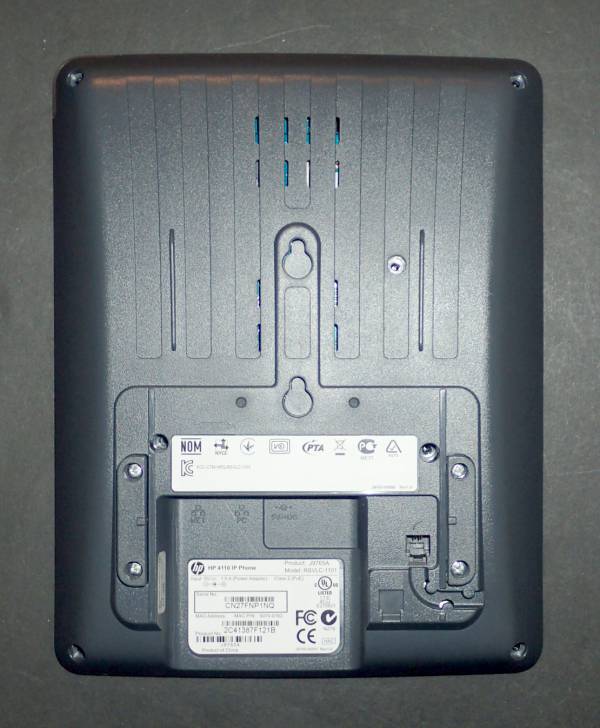

HP 4110 front HP 4110 back


Tear down

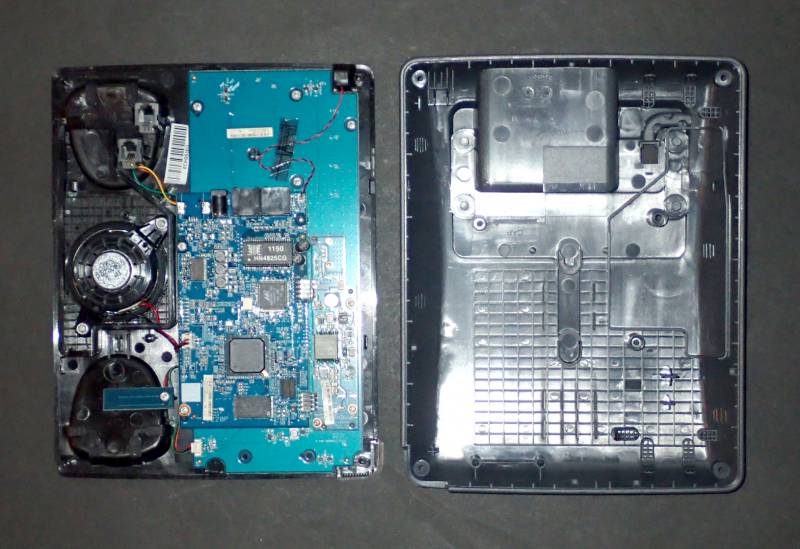

HP 4110 interior

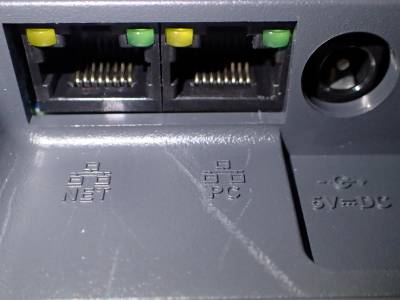

HP 4110 sockets
