Alcatel 4019


Alcatel 4019 overview

Overview


Hardware description

Components

  • LCD, 1 row of 20 alphanumeric characters.
  • ST M29W800DB, 3V 8 Mbit (1MB X8 or 512KB X16) Flash Memory.
  • IDT 71V016 3.3V 64K x 16 Bit Asynchronous Static RAM.
  • Alcatel custom chip
  • 393 (LM393) dual independent precision voltage comparator.
  • HB244 (74HC244) Octal buffer/drivers with tri-state outputs.
  • 431C (LM431) Programmable Voltage Reference.

Examples

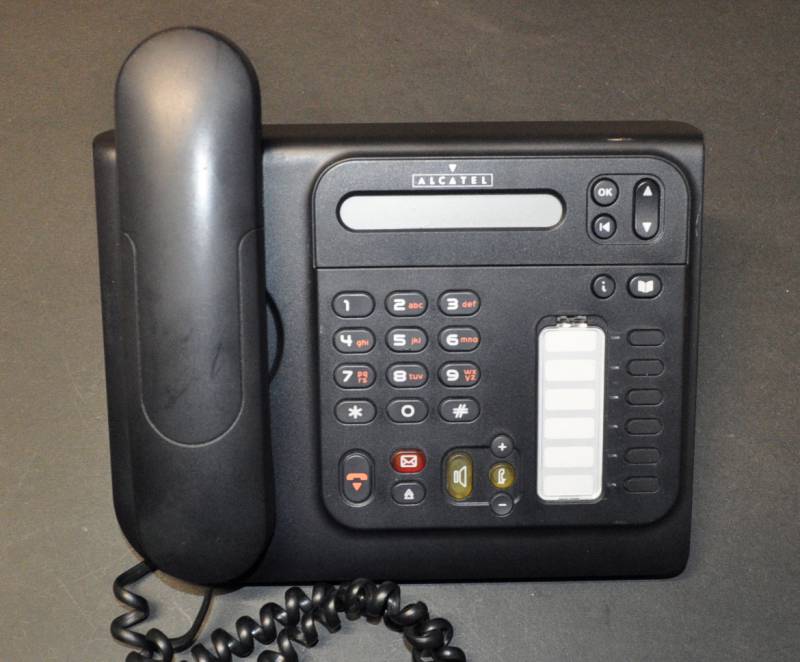

Alcatel 4019 top

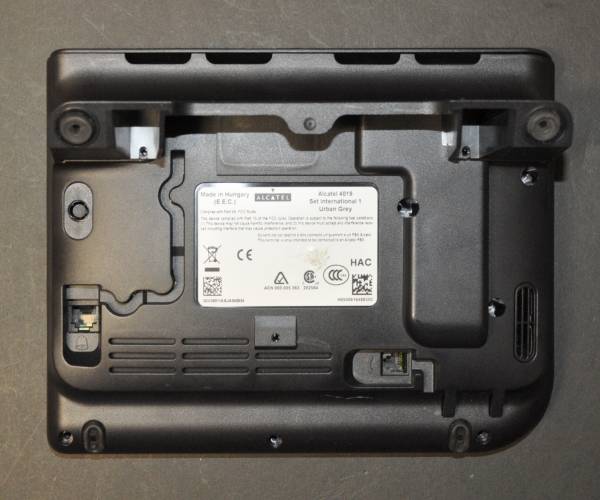

Alcatel 4019 back

Tear down

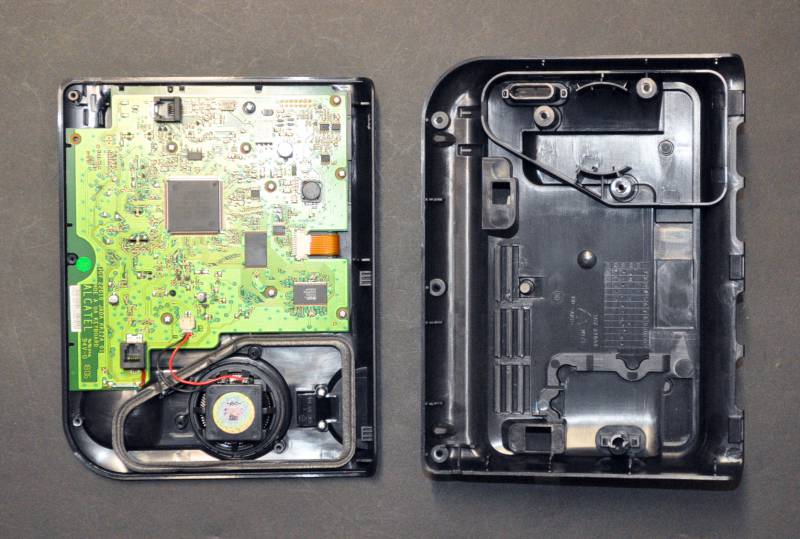

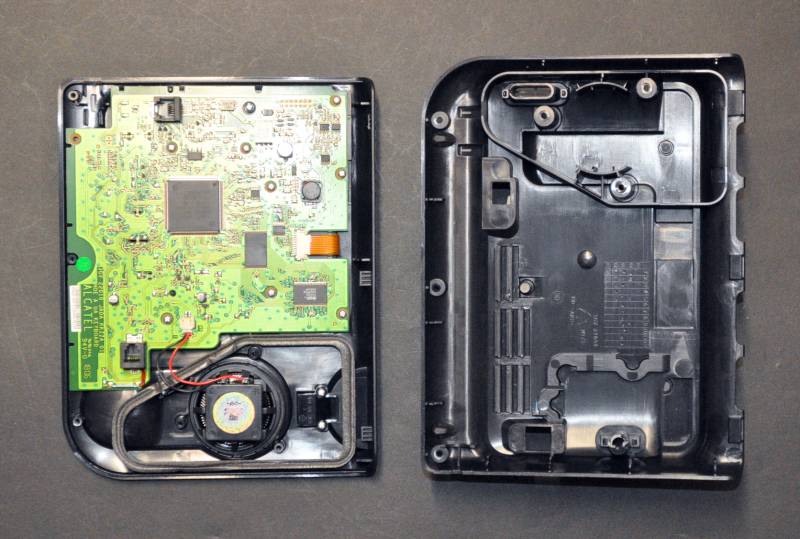

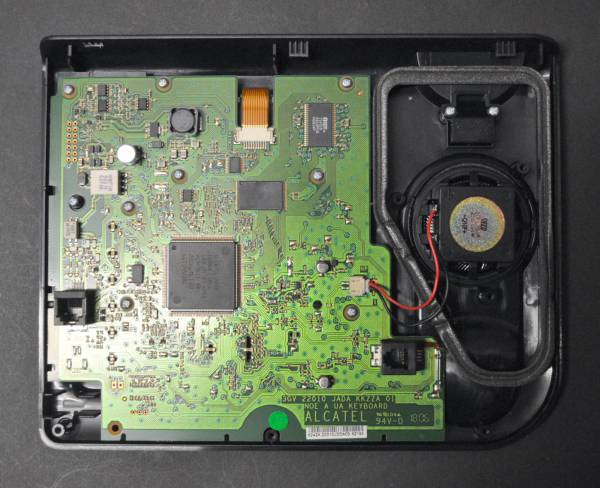

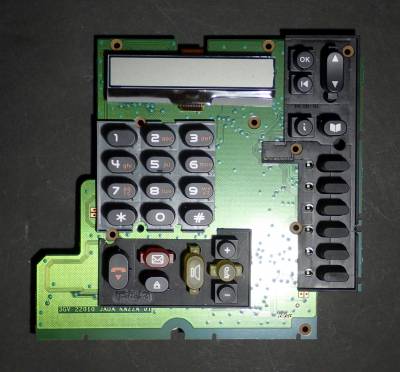

Alcatel 4019 interior Alcatel 4019 interior

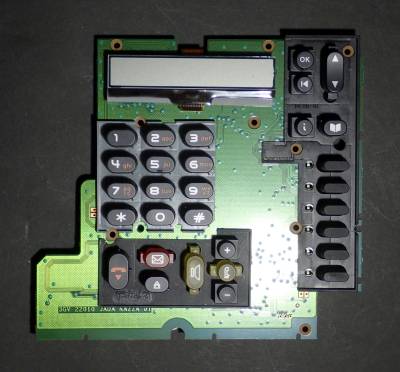

Alcatel 4019 circuit

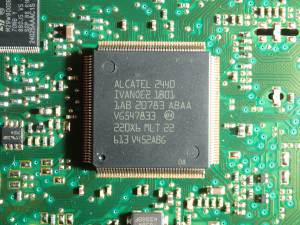

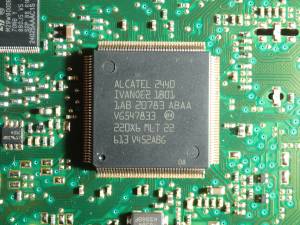

Alcatel 4019 custom chip
