CCD module data
| CCD Description | |
|---|---|

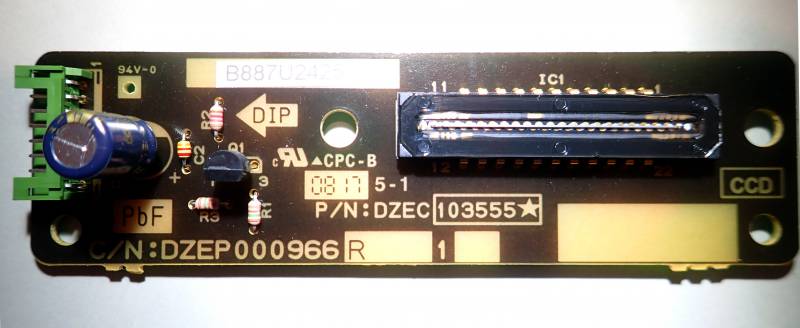

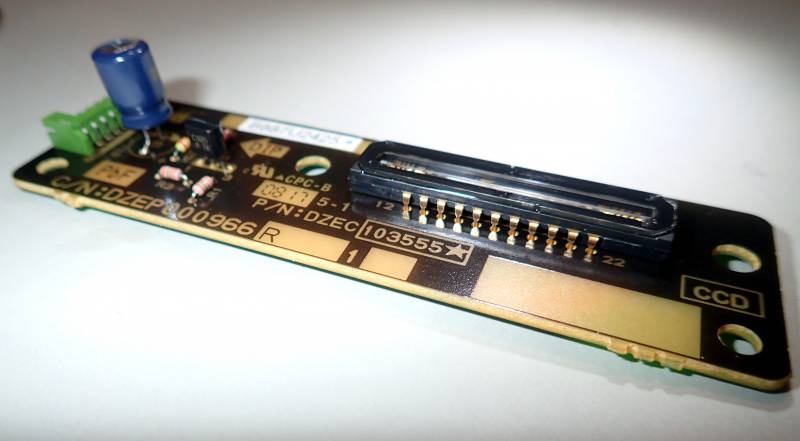

| Model | DZEC103555 |
| Manufacturer | Nec |
| Recovered from | Panasonic UF6100 |

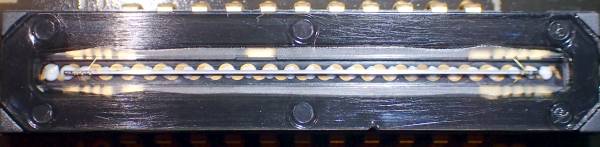

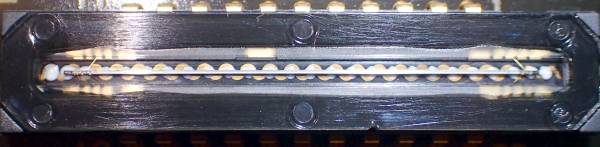

| Sensor | μPD3753 |
| Pixels | 2088 |
| Colour | mono, peak response at 550 nm (green) |
| Dynamic range | 375 Saturation voltage/Dark signal non-uniformity |
| Driver IC | |
| Connector | |
| Num Pins | 8 |
| Pin spacing | 0.08” |
Datasheets :
Examples :
