CCD module data
| CCD Description | |
|---|---|

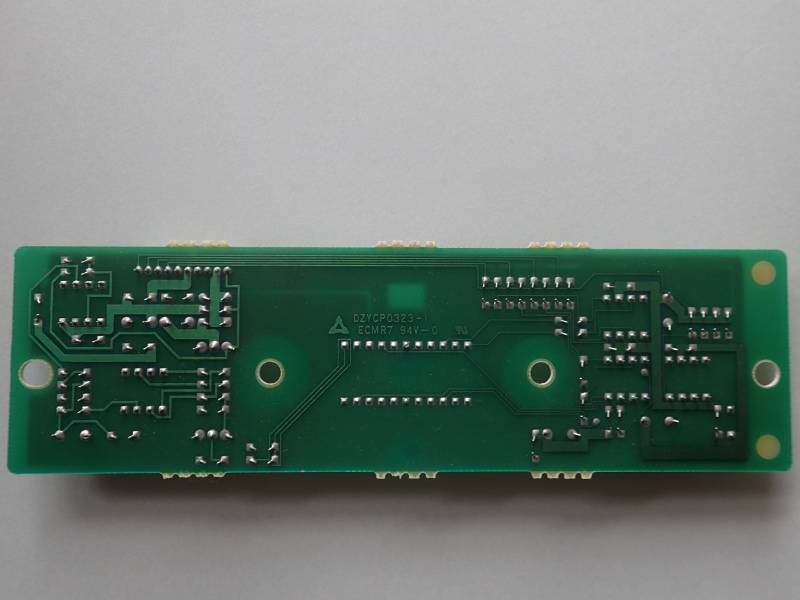

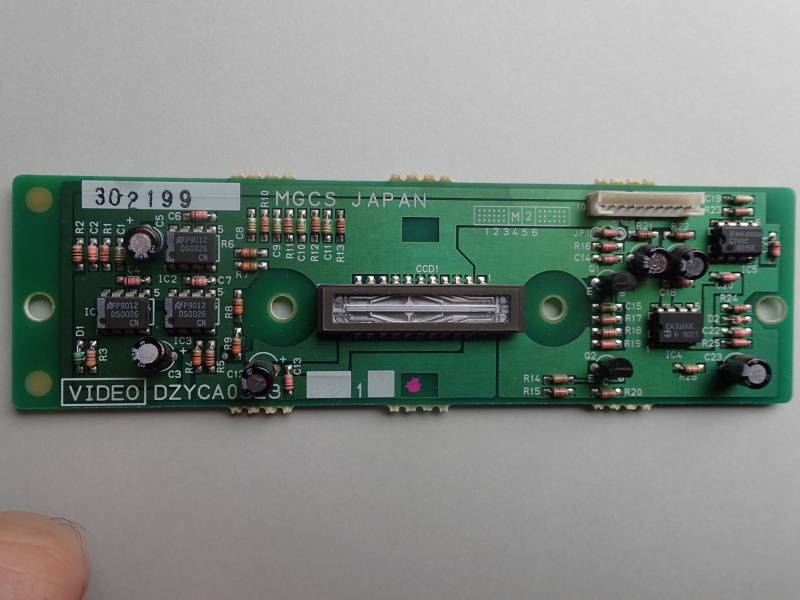

| Model | DZYCA0323 Video |
| Manufacturer | Matsushita Graphic Communication Systems (MGCS) |
| Recovered from | Panasonic UF250 Fax? |

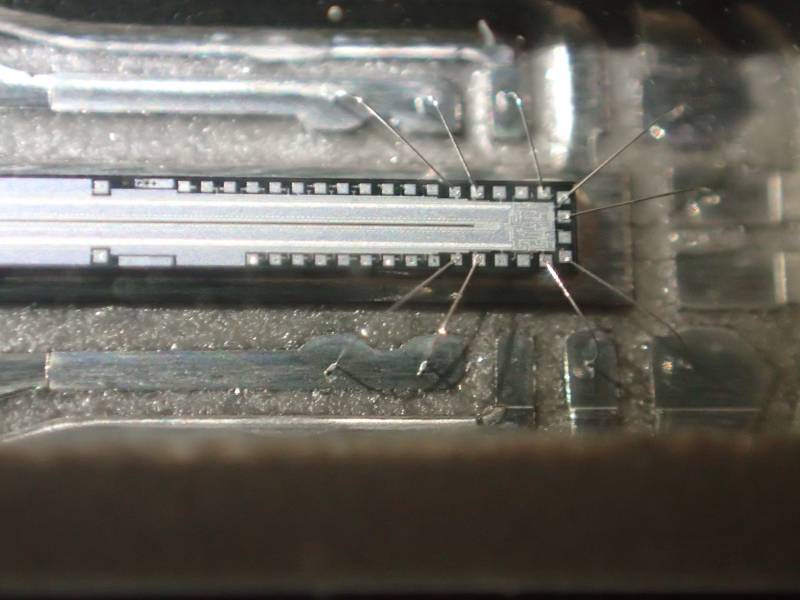

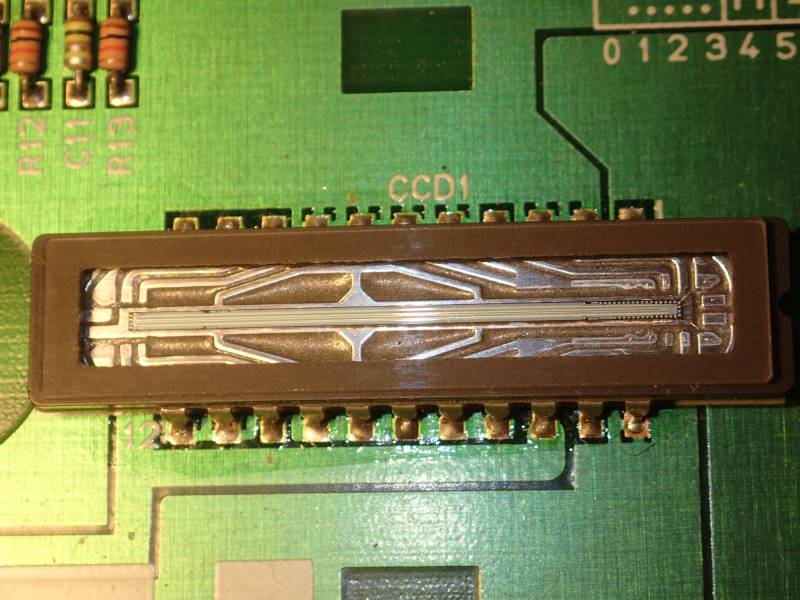

| Sensor | Toshiba TCD102C 1) |
| Pixels | 2048 |
| Colour | Mono |
| Dynamic range | 600 |
| Driver IC | DS0026, 741, CA3100 |

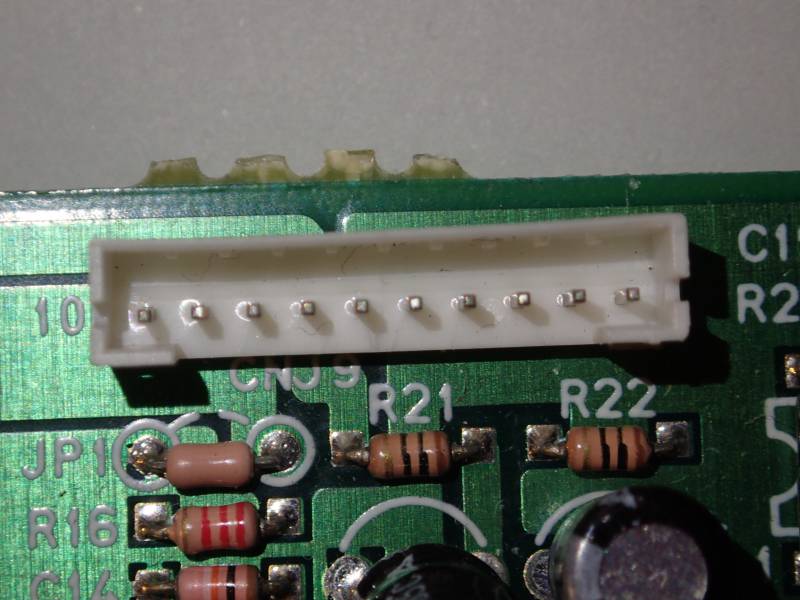

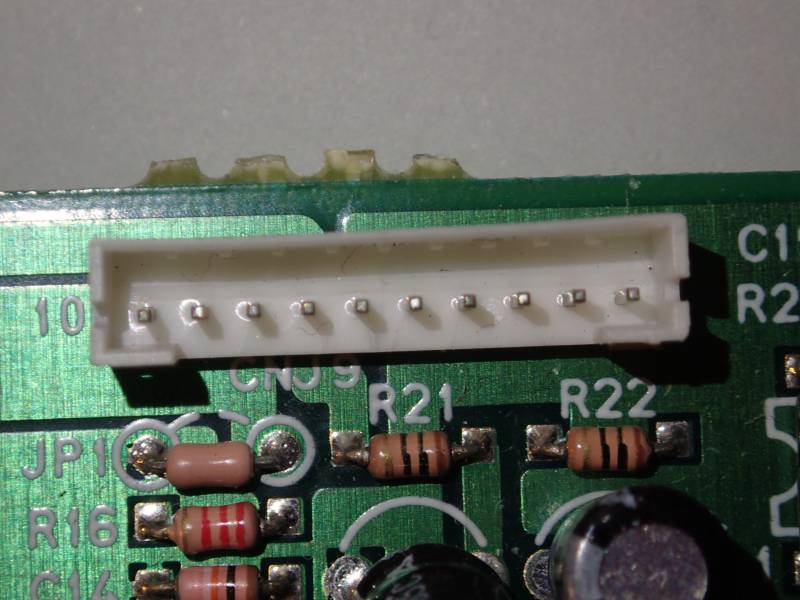

| Connector | |
| Num Pins | 10 |
| Pin spacing | 0.08” |
Datasheets :
Examples :
1)

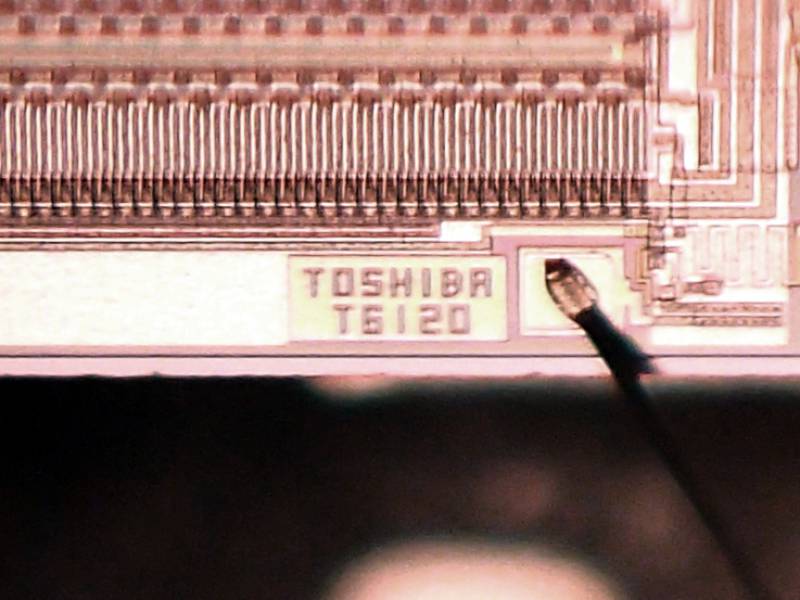

I have not verified this by unsoldering the chip, the die is marked T6120 if that helps
