CCD module data
| CCD Description | |
|---|---|

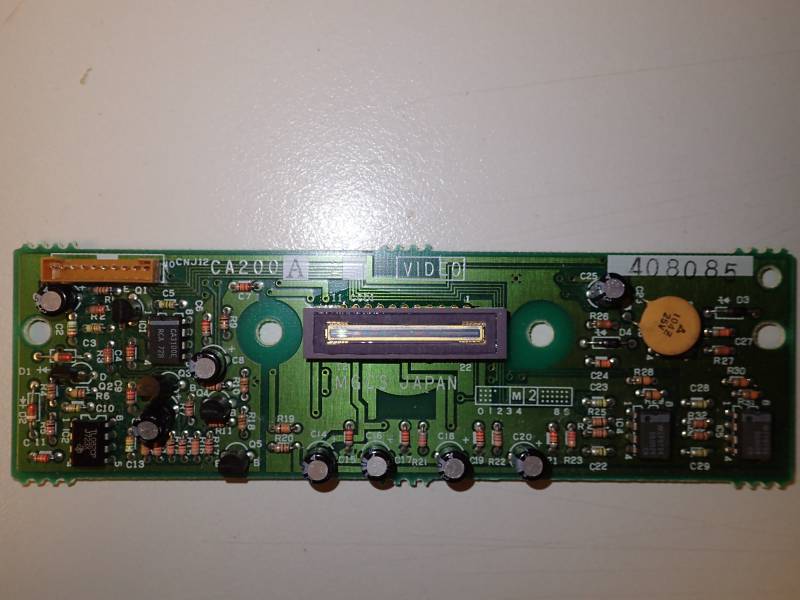

| Model | CA200A-2 Video |
| Manufacturer | Matsushita Graphic Communication Systems (MGCS) |
| Recovered from | Panasonic UF 400 Fax? |

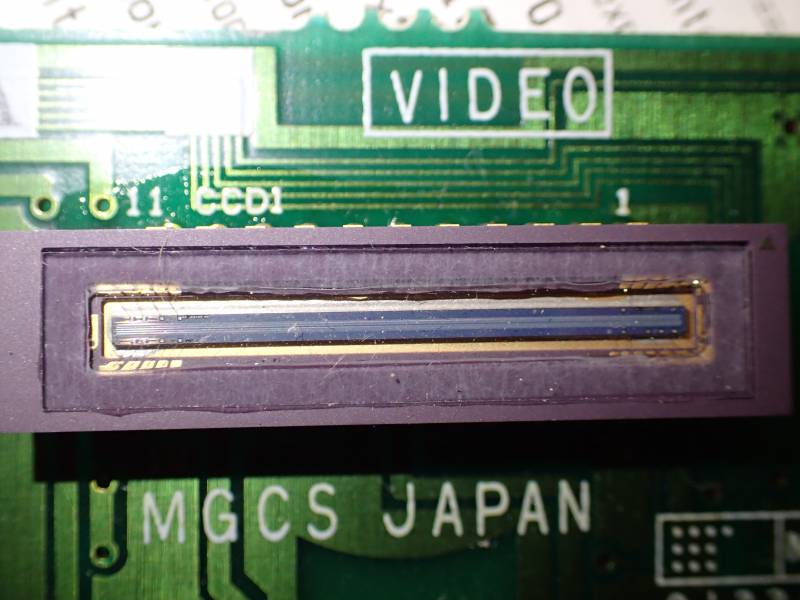

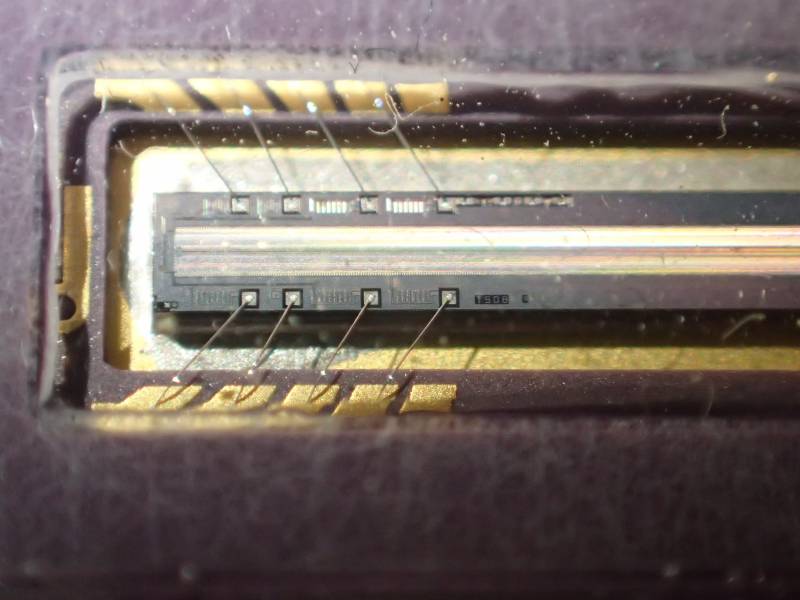

| Sensor | Matsushita MN8051 |
| Pixels | 2048 |
| Colour | Mono |
| Dynamic range | |
| Driver IC | DS0026, TL082, CA3100 |

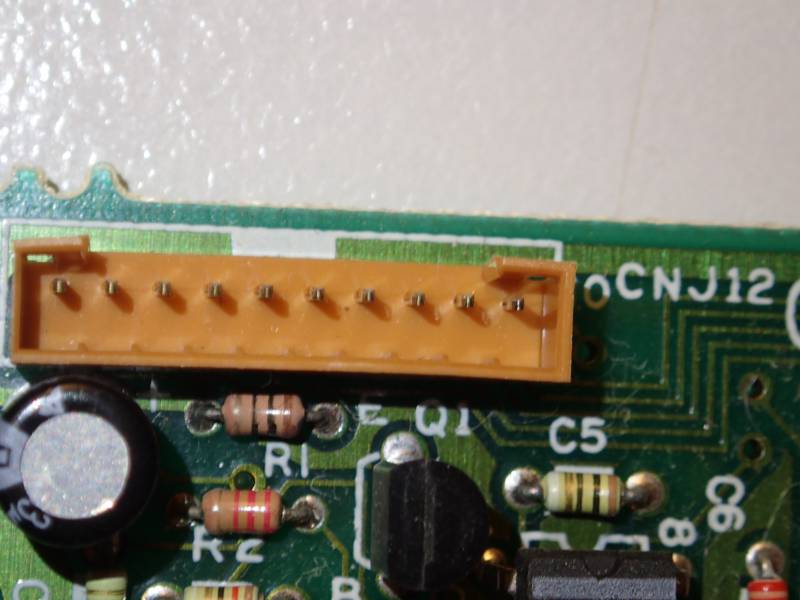

| Connector | |
| Num Pins | 10 |
| Pin spacing | 0.08” |
Datasheet for MN8051 CCD.
Examples :
