a0L028

LCD Description
ModelL303646, a0L028
ManufacturerPanasonic
Recovered fromPanasonic KX-T7565 phone 1)
Board IDsPSUP1315ZB
LCD typepositive
Polarizer typereflective
Columns16
Rows1
Char matrix5×8
Driver ICHitachi HD44780 compatible (CoG)
Backlight-
Arduino driverLiquidCrystal_SPI
ConnectorPCB flex cable
Num Pins6
Pin spacing1mm
Module size55 x20 mm
Connector pin-out Arduino test rig
Pin#LabelPin
1DataD9
2SCKD5
3STBD4
4V0Contrast adjustment 2)
5Vdd+5V
6VssGND

LCDs with the same cable and controller - g7a145 (orientation rotated 180degrees), b53K4631, a0L028, b53K4671, c7g045 (larger)

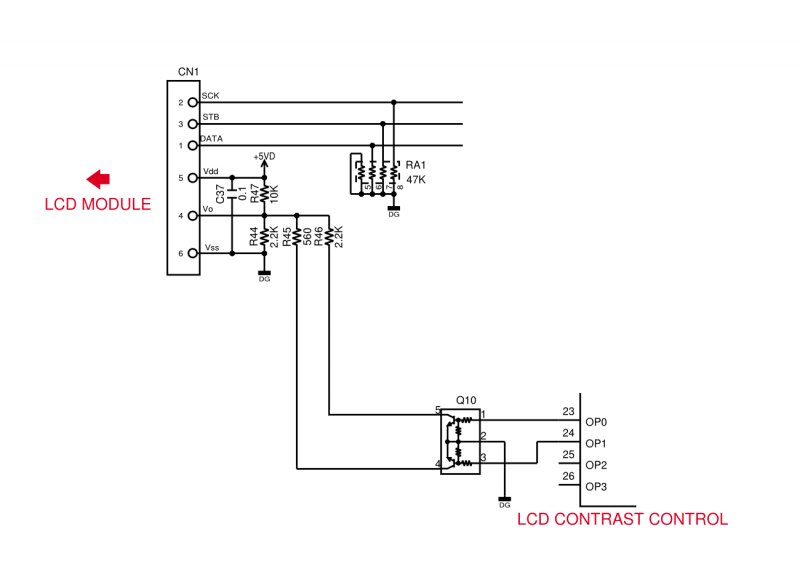

a0L028 circuit


Examples :

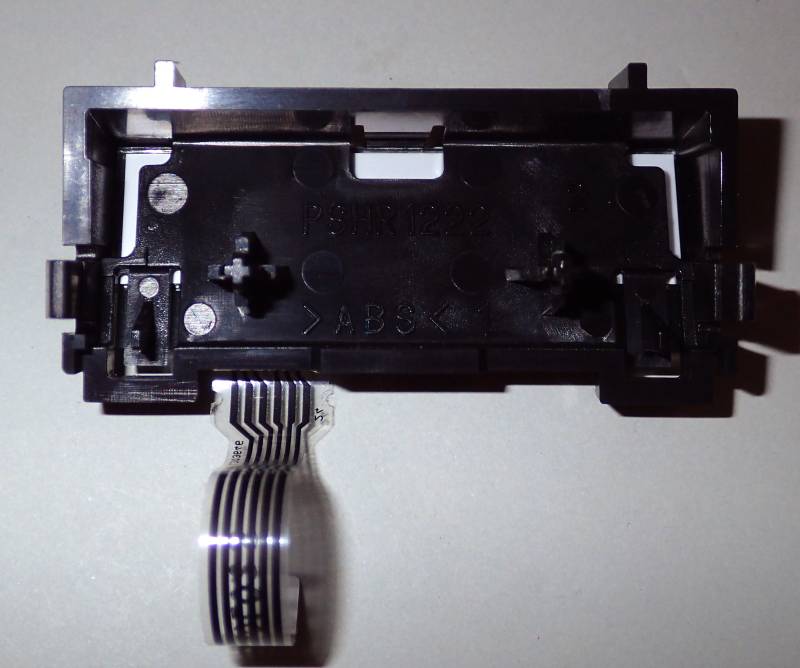

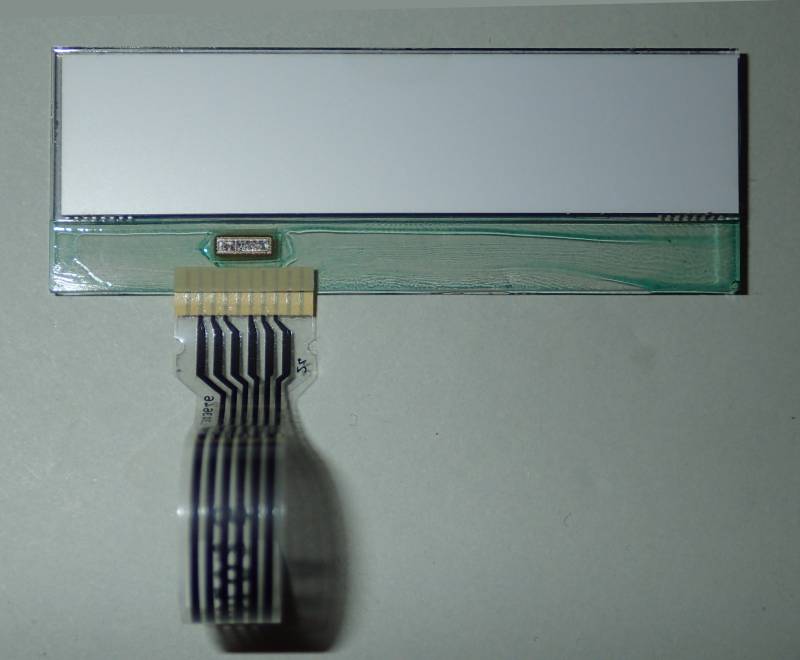

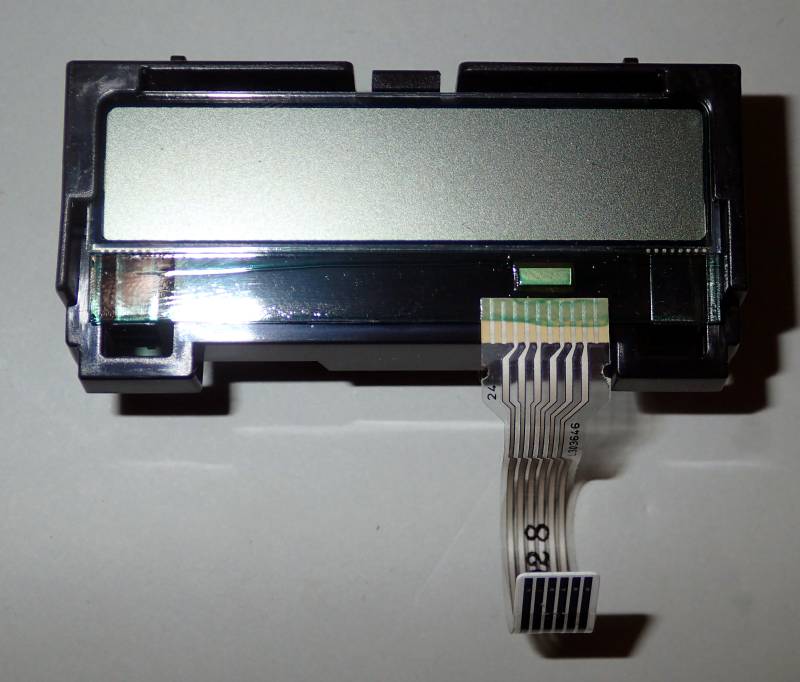

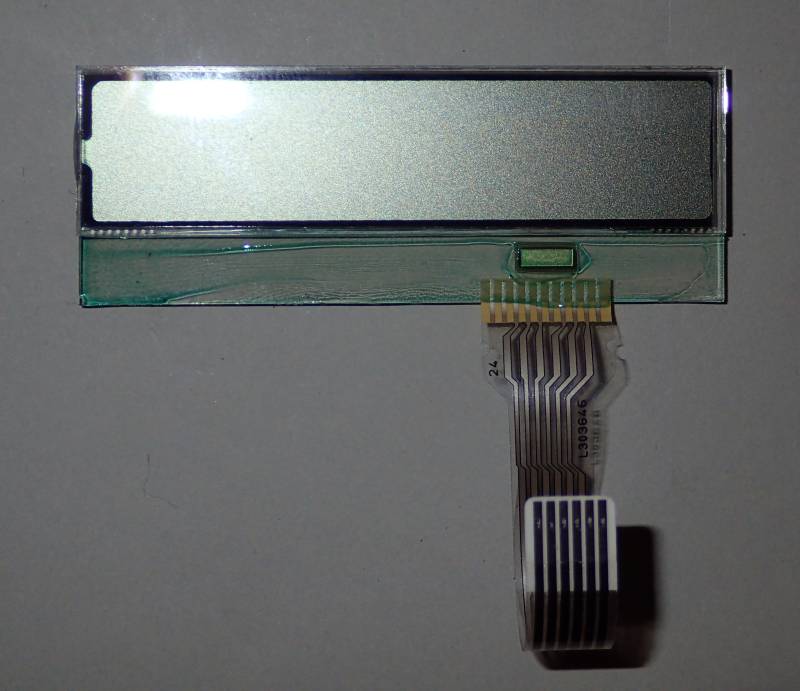

a0L028 front a0L028 back a0L028 overview with board a0L028 overview with board

a0L028 connector
a0L028 connector a0L028 connector

a0L028 chip

a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set
a0L028 character set

a0L028 examples
a0L028 examples

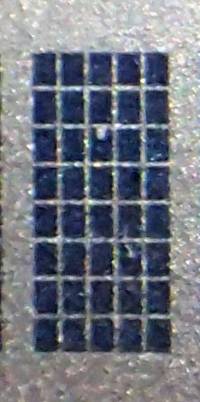

a0L028 pixel layout

2) connect to potentiometer between +5V and GND
