Generic Multifunction Shield


Shield Description
ModelGeneric Multifunction Shield
Manufacturer-
Brand
Clone of
Arduino compatibilityUno R3, Mega2560
TypeMultifunction
Voltage5V
Current
Software

Overview

Provides multiple I/O options.

Features

  • 4x 7 Segment display
  • 3 x push button
  • Buzzer
  • 4x LED
  • 10 turn pot

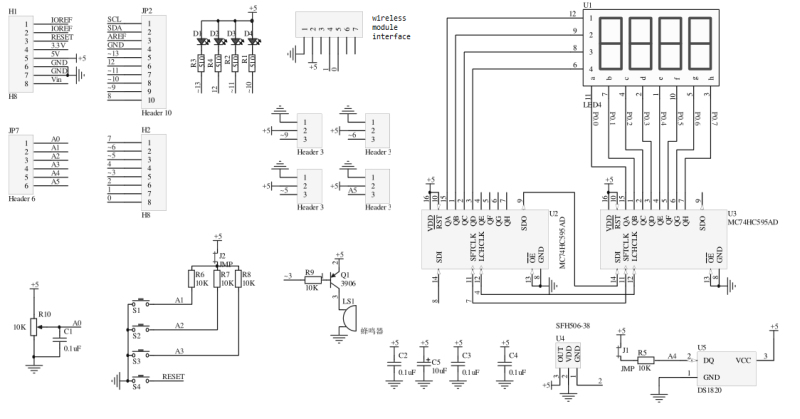

Schematics

Schematic

Examples

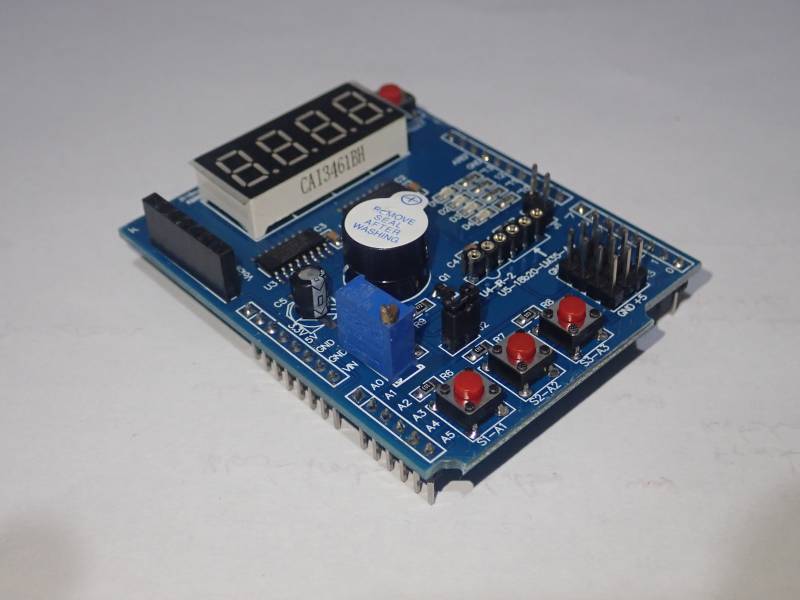

Schematic
