Geared motors

CKD J209-079

Geared Motor Description
ModelJ209-079
ManufacturerCKD
Recovered from
Voltage24V DC (starts ok with 15V)
RPM Without Load10 rpm
Rotation directionCCW (won't run in reverse)
Current Without Load87 mA
Maximum Torque
Weight160 gm

Examples

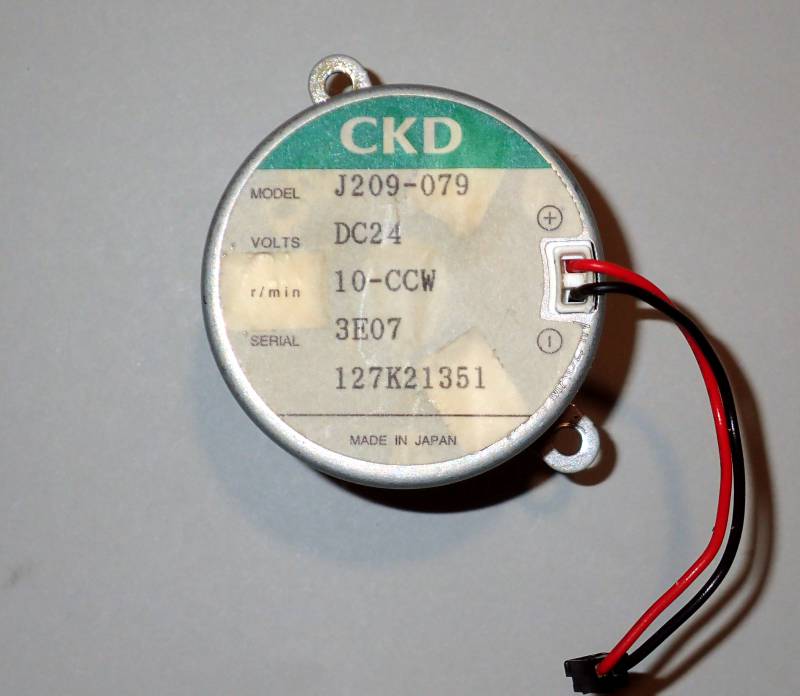

CKD J209-079 overview

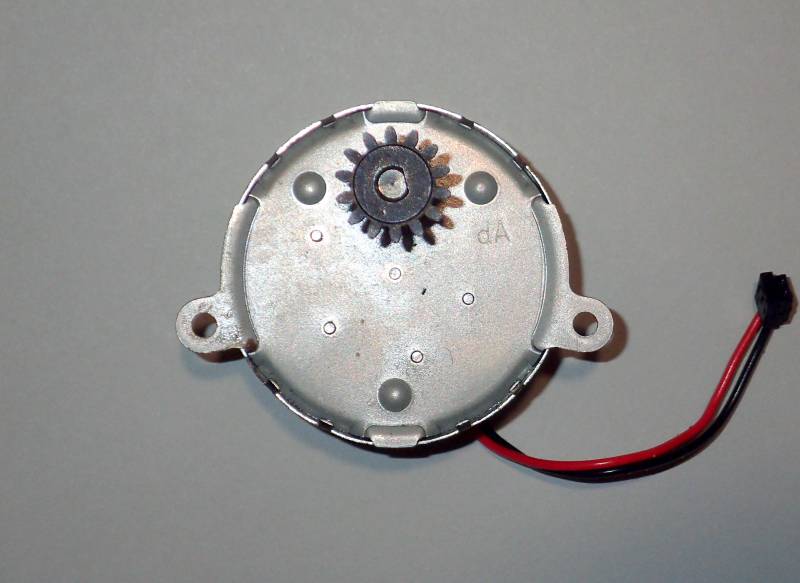

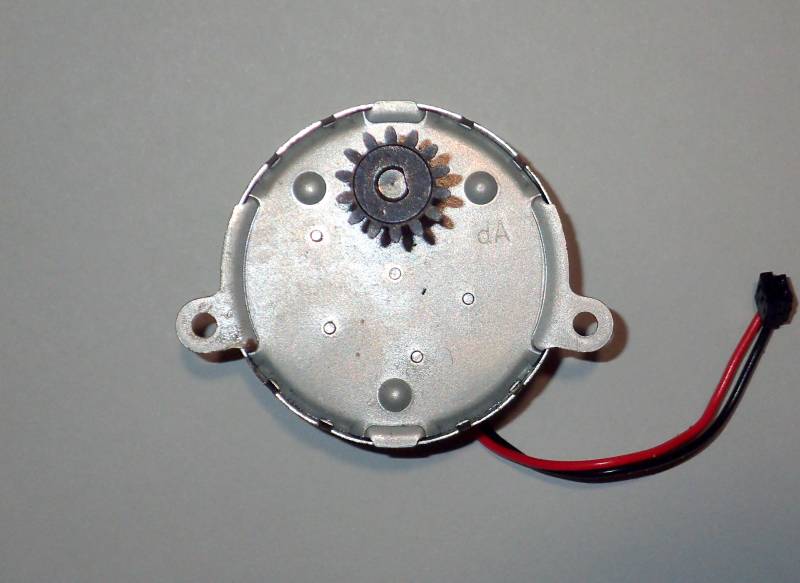

CKD J209-079 top

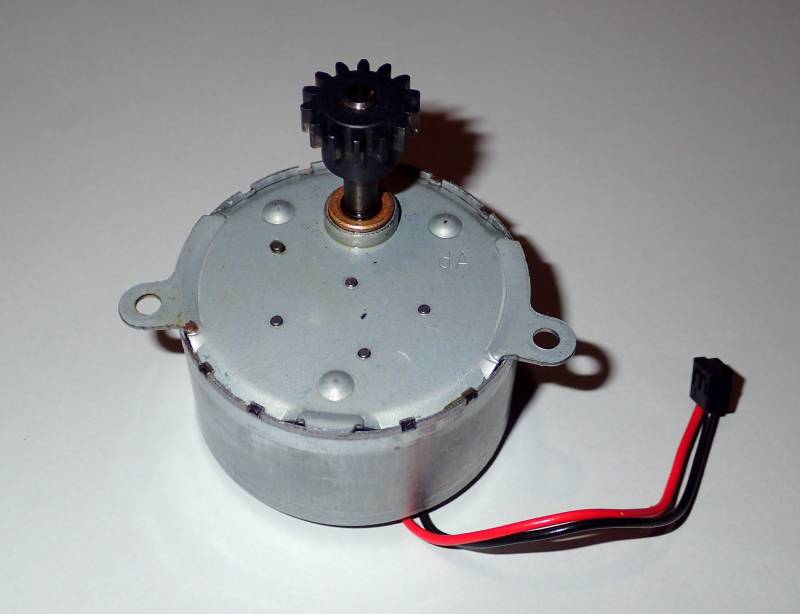

CKD J209-079 bottom
