Silverlit Spy Cam Aqua

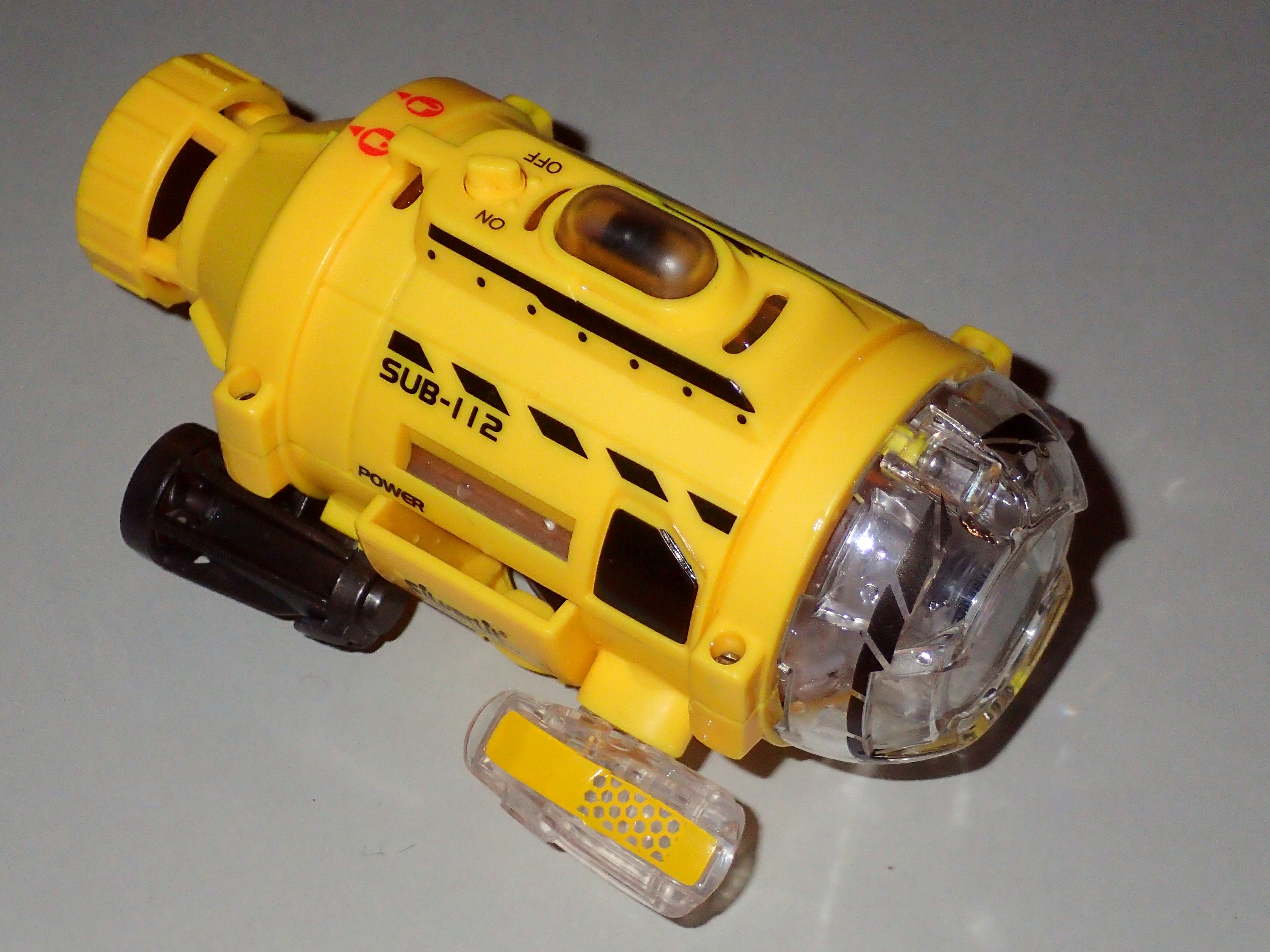

Spy Cam Aqua overview
Silverlit Spy Cam Aqua Toy Submarine
Exploring tidal rock pools around Wellington

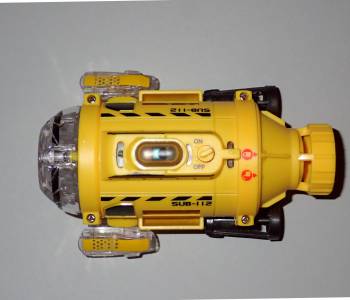

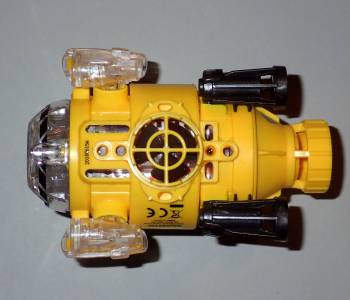

topside

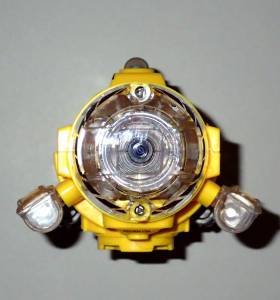

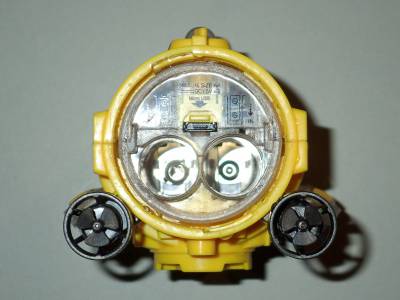

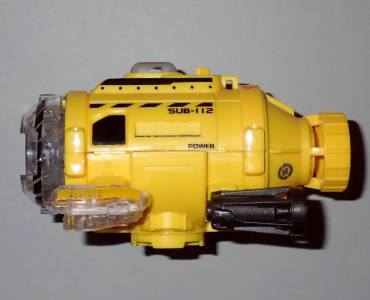

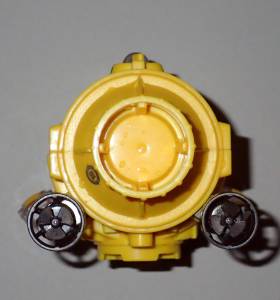

frontsideback
underside

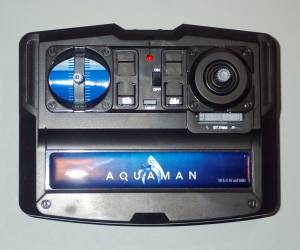

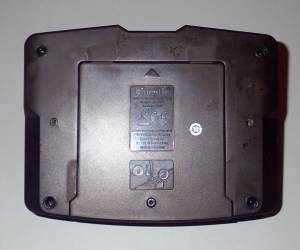

Remote topside Remote underside

Overview

The Silverlit Spy Cam Aqua (Sub-112) is a small toy submarine with infrared remote control and onboard video camera.

Specifications:
Dimensions11.5 (L) x 7.5 (D) x 6.5 (H) cm
Weight (no batteries)91 g
RC Range on SurfaceApprox. 5 m
RC range SubmergedApprox. 2 m
Top SpeedApprox. 0.1M/s
Memory256MB
Photo Recording1280 x 960 pixel, jpg
Number of PhotosApprox. 1000
Video RecordingVGA 640×480 pixel, avi
Video LengthApprox. 6:45 mins (235MB)
Battery, Submarine2 x AA Alkaline batteries
Power3V, 3W
DurationApprox. 30 mins
Battery, Remote Control4 x AA batteries
Power6V, 0.6W
Measured performance
Video LengthUp to 10 minutes
Minimum focus30 mm
Maximum focus100 mm
RC Range on Surface> 8.5 m
RC range Submerged ? m
Battery, Submarine2 x AA Nickel-Metal Hydride, 2450mAh
Duration> 30 mins with 3 motors and headlamps on
Battery, Remote Control4 x AA batteries

There are three accessories:

  • a cover for the dive propeller to help prevent it being fouled
  • a fish feeder that attaches to the front to attract subjects for photography
  • 4 ballast weights in the form of screws that can be inserted underneath to adjust buoyancy.

Also sold as “EXost” “X AquaSpy”, brand “Tooarts”. There also appears to be a similar (later?) model labeled “Submarine 3046”, “Cam Project-T”, that has a steerable rudder and different remote controller.

Commercial material

Hardware Description

The submarine contains 3 motors - left and right side propulsion motors, and a dive/surface motor. There is a forward-facing camera and two white LED illumination lamps. On the top there is a power switch, red/green status light, and an infrared receiver. Both electronics and motors are powered by a single pair of 1.5V AA cells.

The submarine has an outer plastic hull, and another inner waterproof hull that contains the electronics and batteries.

The camera has a fixed focal distance, and things are reasonably in focus over a range of 30 to 100mm from the front of the submarine. The optimum seems to be about 70mm.

Spy Cam Aqua features
Silverlit Spy Cam Aqua Features

Remote Control

The remote runs off 4 x 1.5V AA cells. It has 7 controls that signal the submarine using 2 infrared LEDs :

  • Power on/off slider switch (doesn't turn submarine on/off)
  • Dive/surface linear slider
  • Left/Right Up/Down joystick
  • Left and right trim
  • Single photo shot button (1280 x 960 pixels)
  • Video record button (640 x 480 pixels, 25 frames/sec)
  • Headlamp on/off push button
Remote control features
Remote Control Features

The remote communicates using bursts of a 38kHz carrier, infrared, signal. The signal is encoded using pulse length modulation (PWM).

Batteries

In freshwater, using Alkaline batteries, the submarine floats with just the status light dome above water level, in saltwater it floats slightly higher. Carbon Zinc, Alkaline, Lithium and rechargeable nickel-metal-hydride batteries all weigh different amounts. Rechargeable nickel-metal-hydride weigh the most, and the submarine just sinks to the bottom as they are too heavy.

AA batteries
TypeBrandWeight
Carbon/ZincHarvey Norman14.25 g
LithiumEnergizer14.75 g
AlkalinePanasonic23 g
AlkalinePhilips23 g
AlkalineDuracell MN150023 g
AlkalineEnergizer Advanced23 g
Nickel-Metal HydridePower Sonic NH-1500AAL23 g
Nickel-Metal HydrideFujicell25 g
Nickel-Metal HydrideEnergizer NH-15-230028 g
Nickel-Metal HydrideEnergizer NH-15-245030 g
Nickel-Metal HydrideEnergizer NH-15-265030 g

If using rechargeable nickel-metal-hydride batteries, a plastic drinking straw (cut in half and all ends sealed) gives about the right buoyancy compensation - attach half on either side and move them forward/aft to adjust the trim.

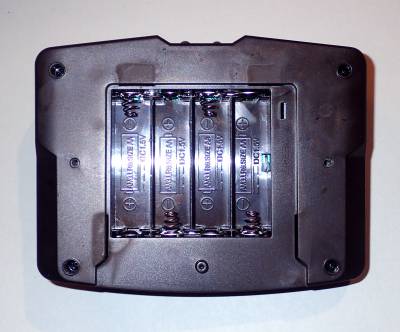

remote battery compartment

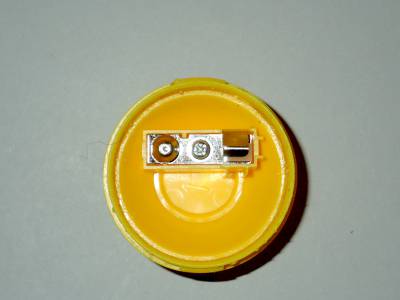

submarine battery compartmentsubmarine battery cover

Operation

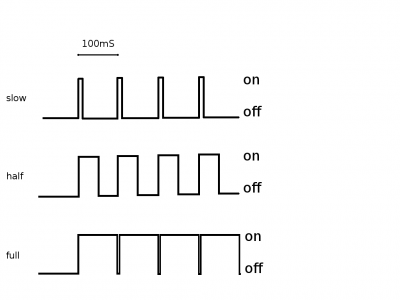

The two propulsion motors are driven together to give forward or reverse motion. Varying the relative speed of those left and right side motors is used to turn the craft. There is also a trim adjustment to account for differences in the left/right side propulsion. The joystick allows for variable control, so can drive the submarine at variable speeds. The propulsion motors are driven at variable speed using pulse length modulation - ie they are turned on and run a full speed for a short period, then turned off for a short period, the ratio of on to off determines the average speed. Speed control appears to go from a 20% to 100% duty cycle.

pulse length modulation

The dive/surface operations rely on the submarine being about neutral buoyancy. Water is propelled upwards through side vents to force the submarine below water, and the motor is reversed to jet water downwards to make it surface again.

If while recording video the submarine runs out of memory space, it will stop recording and flash the red status light. If you happen to switch off the submarine while it is recording you will likely end up with a corrupted file and possibly corrupted FAT filing system on the submarine's inbuilt memory card.

The submarine has a safety timeout, and if there has been no change in the signals received after one minute, it turns off the propulsion and dive motors. It continues to record, and the headlamps stay on if they were already on. Any command, including lights on/off will revive it.

The buoyancy needs to be trimmed so that it floats to the surface upon loss of communication, or power.

When using the dive propeller to surface, the two side propellers turn on as well.

Example Trips

Monitoring submarine activity, Plimmerton
Exploring a deep hole, Princess Bay
Exploring murky water, Plimmerton

Tear down

Submarine
Spy Cam Aqua overview
Silverlit Spy Cam Aqua with the top halves of the outer and inner hulls removed

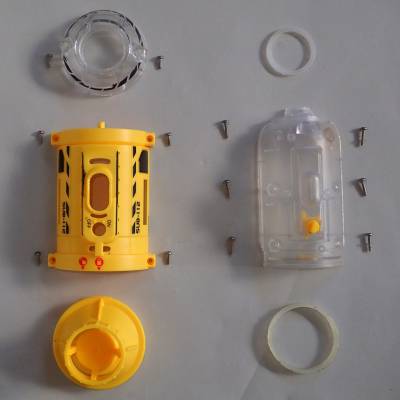

The outer plastic hull is secured by six screws, two holding the front and four holding the top and bottom halves together. The screw heads need a triangle 2.0 screw driver blade. The inner plastic hull is held together by six philips head screws and silicon sealant rings on both ends. The battery cover seals against the rear silicon ring.

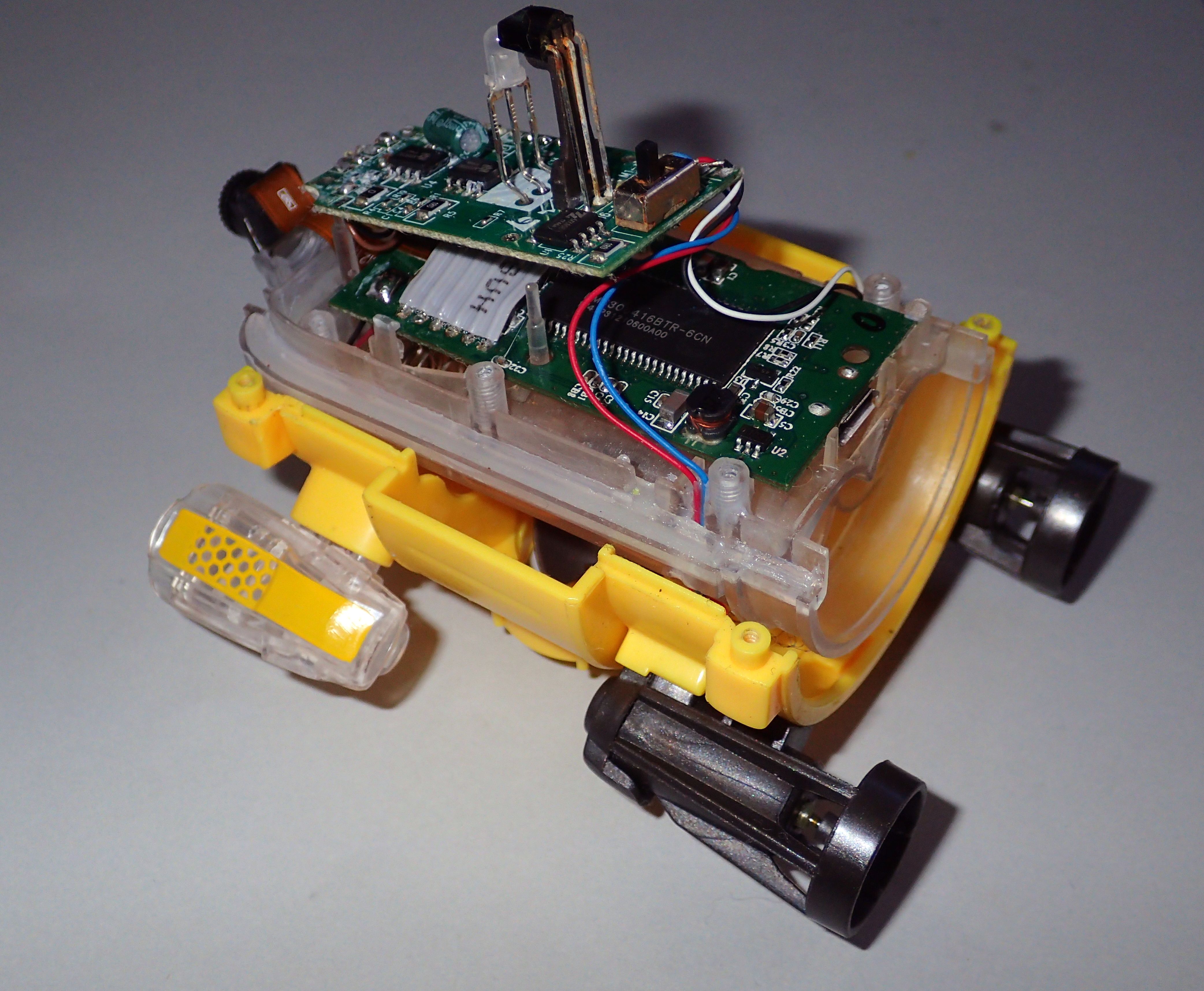

Tear-down shell removed

Inside the inner hull there are two double-sided circuit boards. The top, smaller, one (“82418-RX-B”) contains the on/off switch, infrared receiver and bi-coloured status led. The illumination LEDs and three motors connect directly to this board. There is a 6-way ribbon cable connecting it to the larger logic board underneath.

The camera, USB socket and battery connect directly to the second board which contains a large IC on the top (PMS306416B 64Mbit, Synchronous Dynamic RAM) and another large chip on the underside.

topside
sidebacksidefront

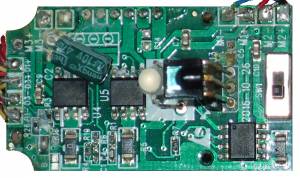

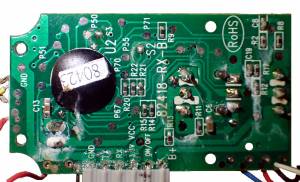

The 82418-RX-B board has an epoxy covered controller chip (labelled 80423) on the underside, and on top there are three 8-pin chips (MX608E motor controllers) and a 47uF, 10V capacitor.

PCB top PCB bottom

Remote Control

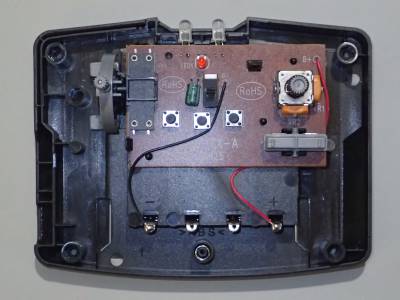

The remote control is held together by four philips-head screws. The headlight on/off button and battery cover spring release are not fixed down and so may come loose after the cover has been removed.

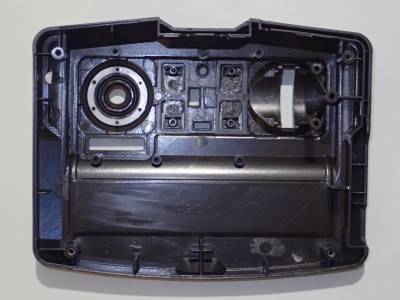

remote control internals remote control internals

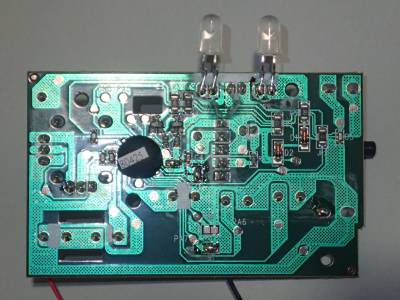

The controller is a single-sided PCB with the components mounted on the underside. It contains a single (20pin?) IC (labelled 80425) covered in resin, two transistors, a few passive components, plus the two infrared LEDs.

remote control PCB

Limitations and Problems

Because the communication between the submarine and remote control is via infrared, the remote needs to be pointed towards the submarine, and the range is severely reduced in bright sunlight.

The remote control is not waterproof or even water-resistant, so care must be taken with the remote, eg careful not to transfer water after handling a wet submarine.

The LEDs don't provide enough illumination for photography in total darkness.

If operating in a natural environment (eg a seaside tidal rock pool), the propellers are liable to be fouled by drawn in seaweed etc. - so the submarine may have to be manually retrieved, particularly awkward if the dive propeller fouls on seaweed attached to the bottom of the pool, and gets stuck while submerged.

No sound recording, video lacks something without a bit of sound.
