EX-35T


35T PIR overview

Sensor data
ModelWonderx EX-35T
ManufacturerOptex
Board IDs35T, 93XF, 43-0317-13
FCCID
TypePIR
Coveragewide angle or long range
Range11m or 17m
ConnectionWired
Power9.5 - 14V, (8mA to 11mA @ 12V)
SensorsPIR, Tamper switch
ControlsPulse count 2/3, LED On/off
OutputsN.C. Alarm, Tamper
Date1993?

Additional info

  • Main chip is OPTEX AP-N203A

Examples

Tear down

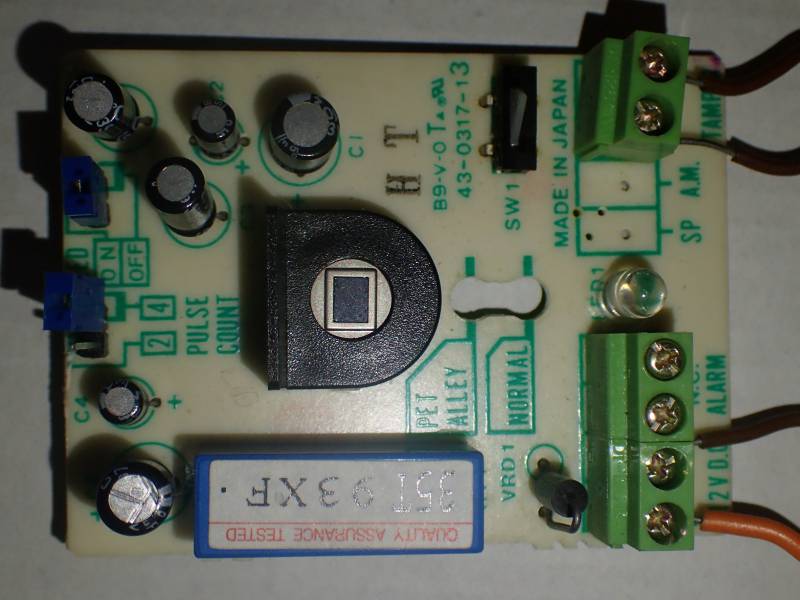

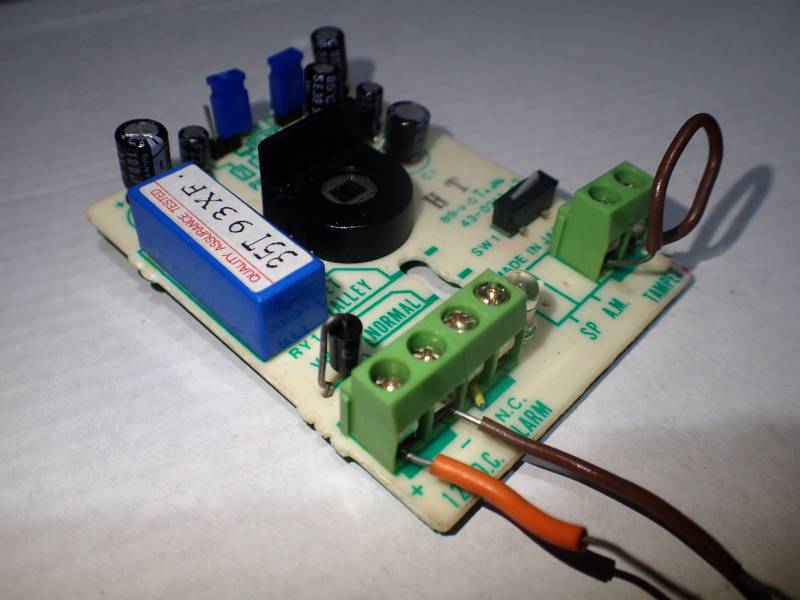

35T PIR PCB overview

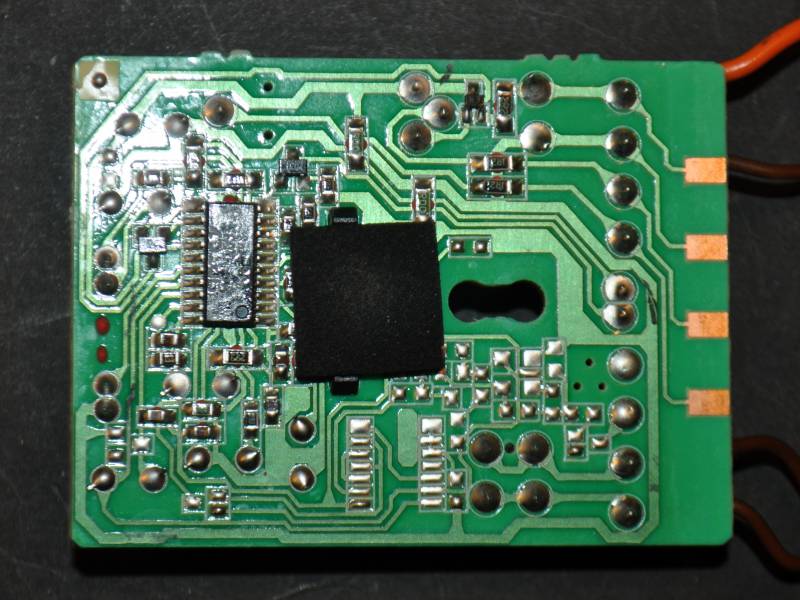

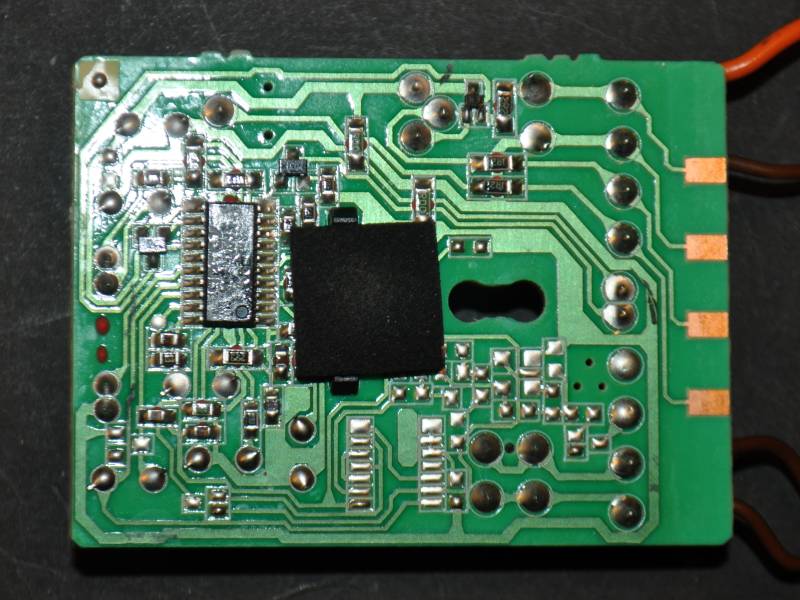

35T PIR PCB top 35T PIR bottom
