Remotes

Published 21 Mar 2023

RXT9400-5800E 2.4 GHz Remote Control Transceiver

overview

Remote Control data
ModelRXT9400-5800E
ManufacturerSMK
FCCIDXO5RXT9400-5800E
Type2.4GHz
Buttons4
DisplayLCD, 128 x 128 pixel, mono, SPI
Batteries2x AA 1.5V
Date2009

Components

  • MC133213, Microcontroller with a 16MHz Xtal
  • Monochrome LCD, 128 pixels by 128 pixels

Examples

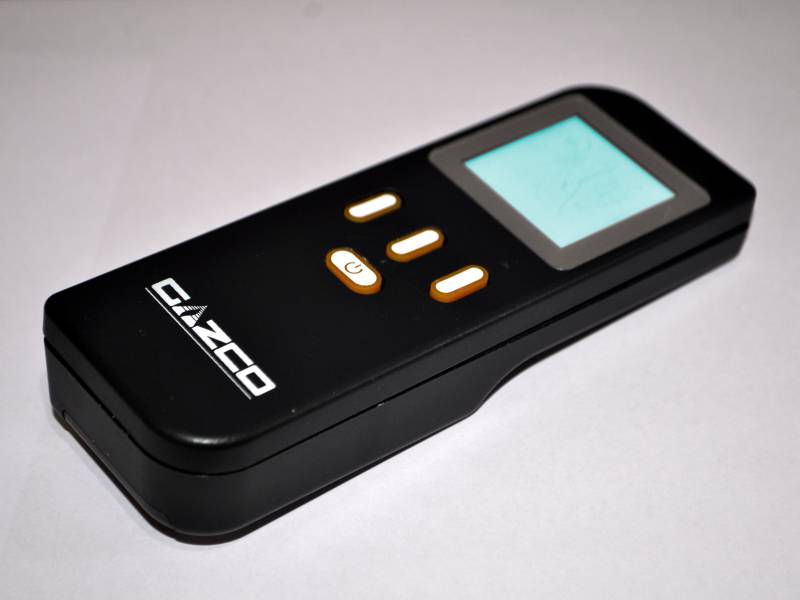

RXT9400-5800E overview

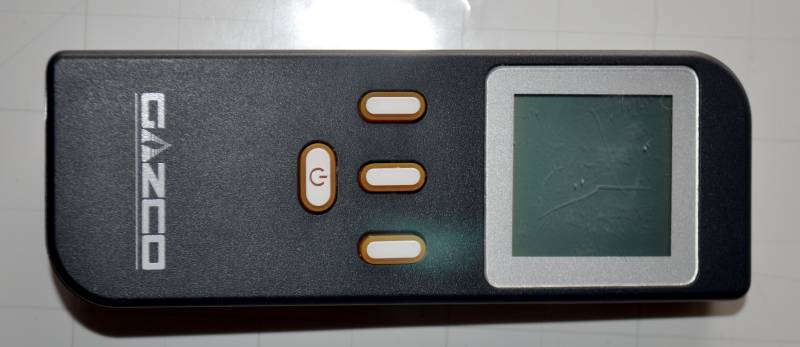

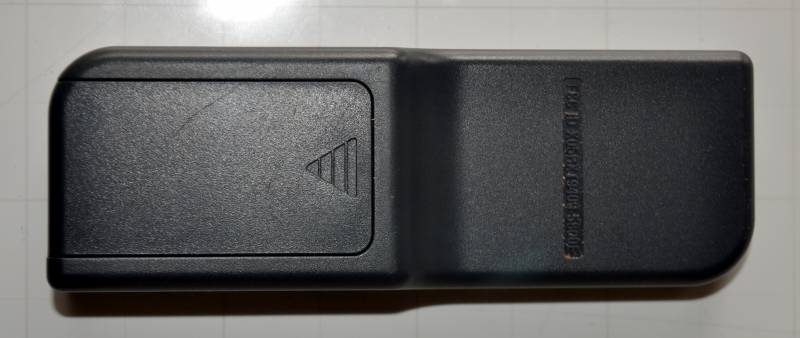

RXT9400-5800E top RXT9400-5800E bottom

Tear down

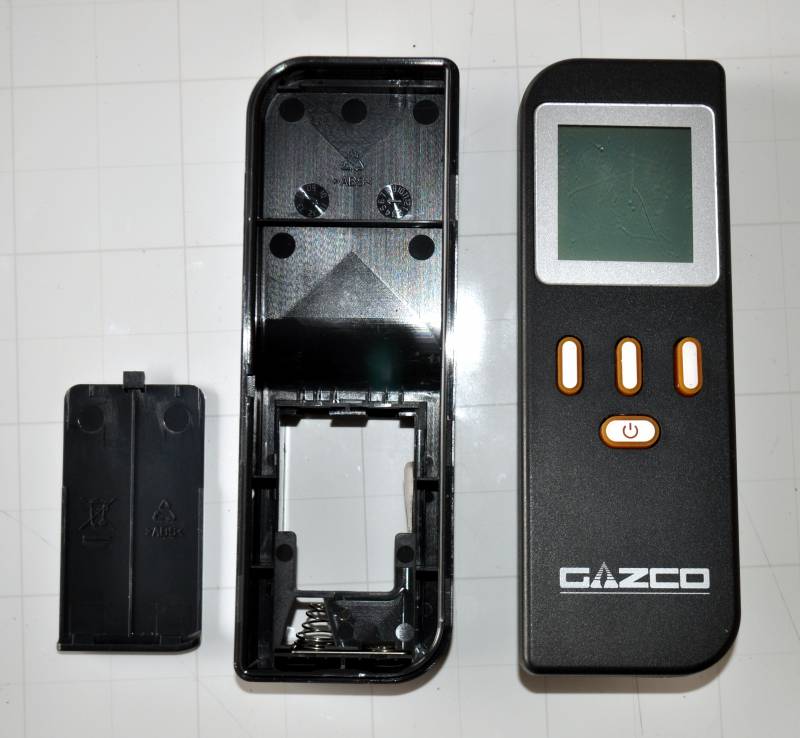

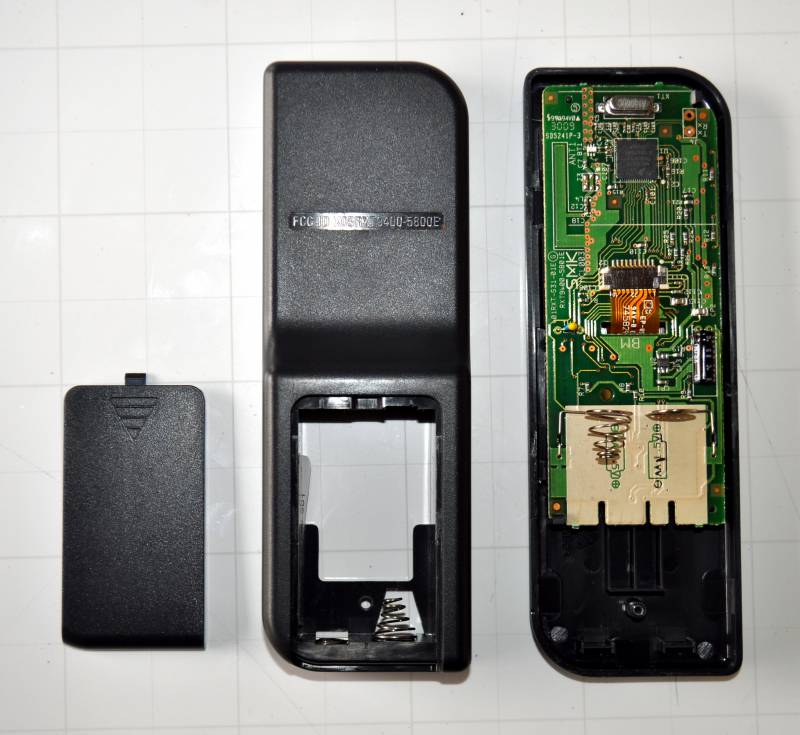

RXT9400-5800E open front RXT9400-5800E open back

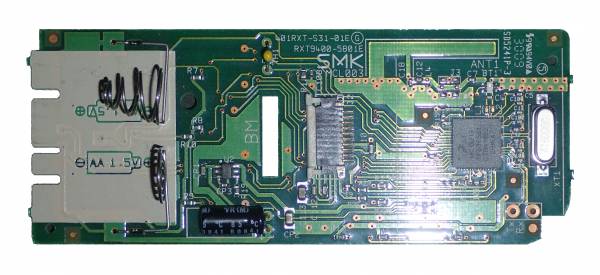

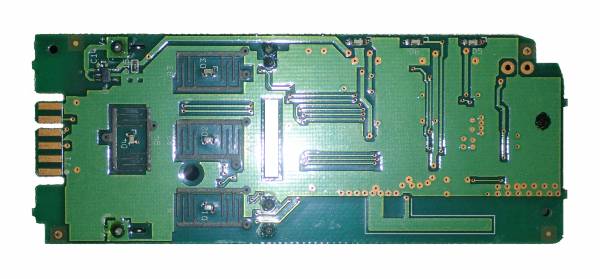

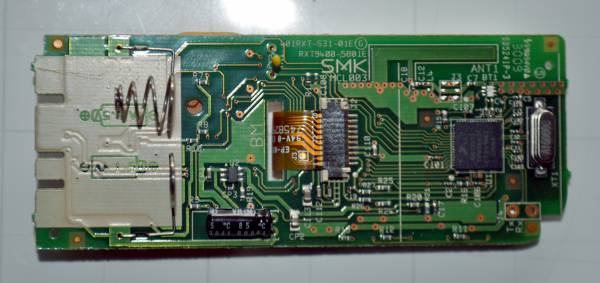

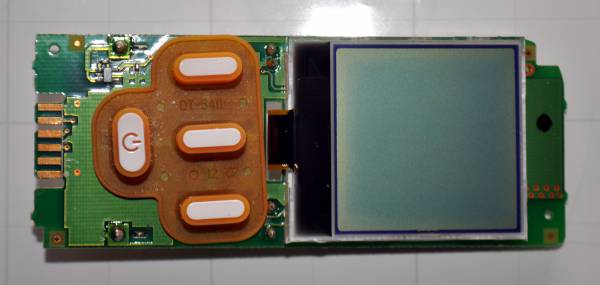

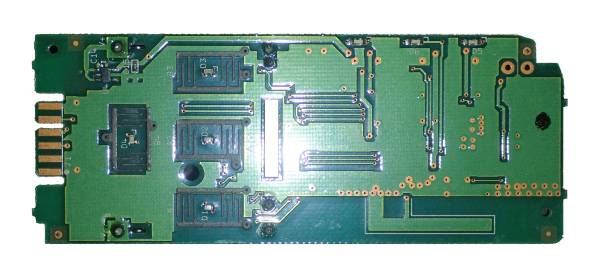

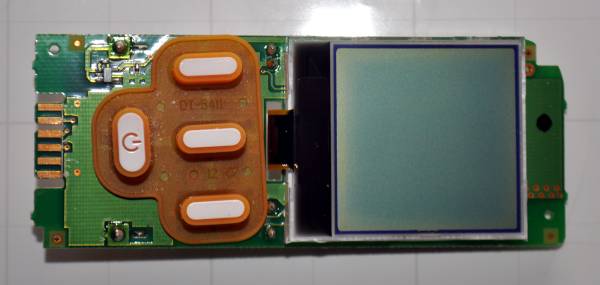

RXT9400-5800E PCB top with LCD RXT9400-5800E PCB bottom with LCD RXT9400-5800E PCB top RXT9400-5800E PCB bottom

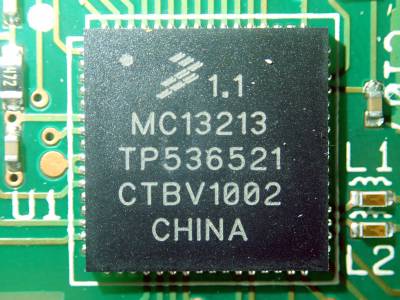

RXT9400-5800E chip

RXT9400-5800E LCD top RXT9400-5800E LCD bottom
