Published 10 Oct 2020

CP 3040/3044

CP 3040 overview

HDD data
ModelCP 3040/3044
ManufacturerConner
Type
Size3.5”
Capacity42MB
Heads2
Cylinders1026/1047
Sectors per track40
RPM3600
Date1990

Additional info

Examples

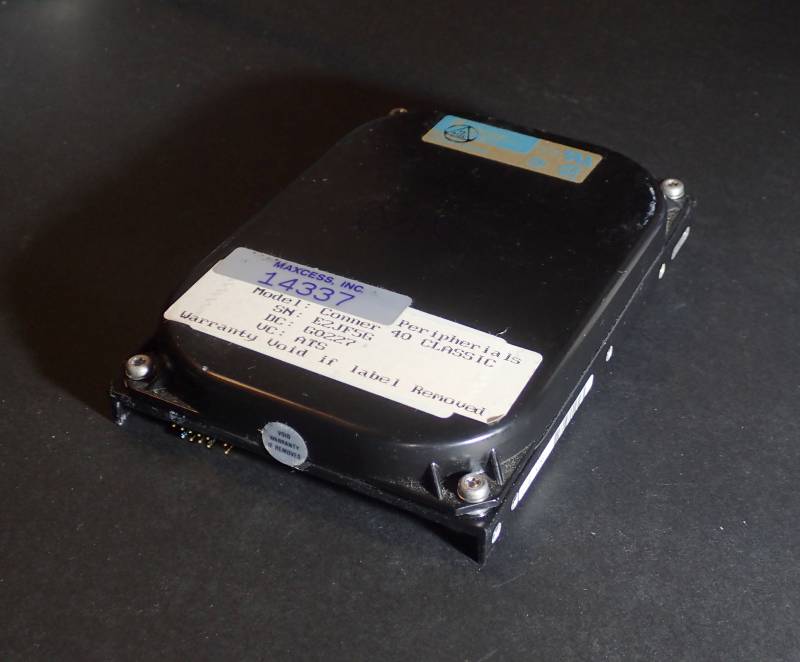

CP 3040 overview

CP 3040 top
CP 3040 front CP 3040 side CP 3040 rear

Tear down

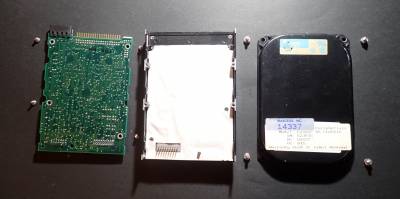

CP 3040 disassembled

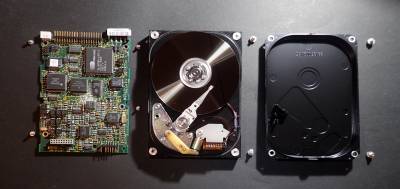

CP 3040 disassembled

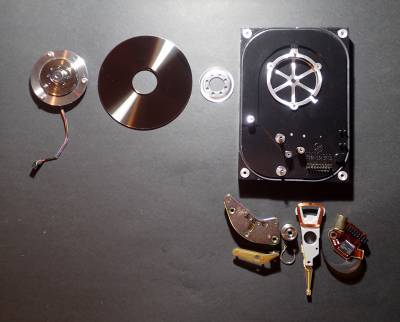

CP 3040 disassembled

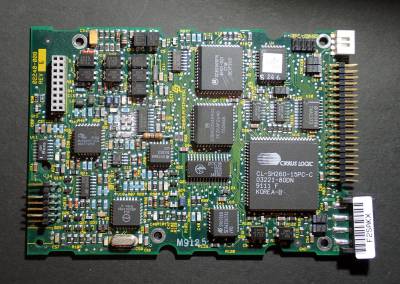

CP 3040 PCB

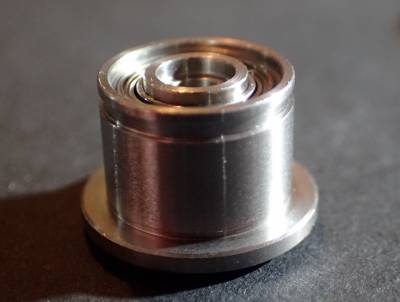

CP 3040 actuator bearing
