CPM-80


CPM-80 overview

Printer Data
ModelCPM-80
Manufacturer
Alternative IDsC-80S
TypeDot Matrix
X Resolution60dpi (normal mode), 102.75 dpi (condensed)
Y Resolution72dpi
Max Printing Width8“
Max Printing Lengthunlimited
Date Introduced

Additional info

Components

  • Stepper motor STP-32CI
  • Stepper motor 17BB-H159-12
  • IC 74HC14
  • IC 74LS38
  • IC 74LS123
  • IC 74LS373
  • IC M54523
  • IC M54567 (x3)
  • IC TMP8155
  • ROM 2764
  • IC D7811

Examples

CPM-80 overview

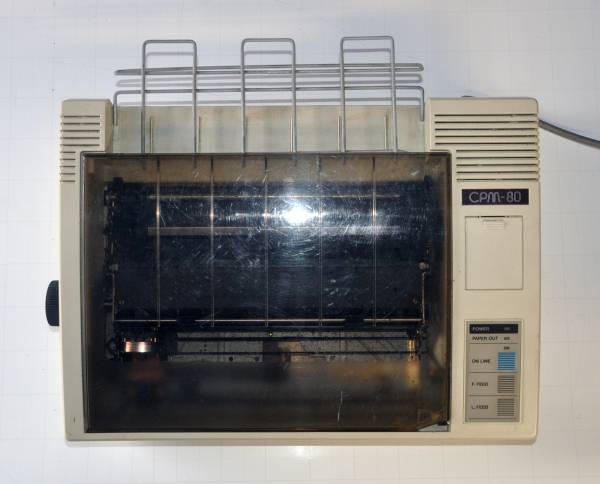

CPM-80 top

CPM-80 open

CPM-80 dip switches
CPM-80 buttons
CPM-80 label

CPM-80 top
CPM-80 frontCPM-80 sideCPM-80 rearCPM-80 side
CPM-80 bottom

Tear down

CPM-80 top
CPM-80 top
