P16245B-C

LCD Description
ModelP16245B-C R3
ManufacturerOrion Display Technology (ODT), Korea
Recovered fromSamsung iDCS 18D phone
LCD typepositive
Polarizer typereflective
Columns16
Rows2
Char matrix5×8 1)
Driver ICHitachi HD44780 compatible (covered in epoxy)
Backlight-
Arduino driverLiquidCrystal.h
ConnectorPCB flex cable
Num Pins14
Pin spacing1.25mm
Connector pin-out Arduino test setup
Pin#LabelPin
1GNDGnd
2Vdd+5V
3VLContrast adjustment 2)
4RSd8
5R/WGnd
6Ed9
7D0
8D1
9D2
10D3
11D4d4
12D5d5
13D6d6
14D7d7




Examples :

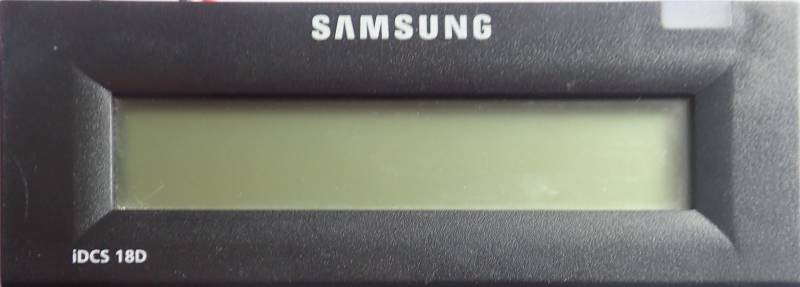

P16245B-C front

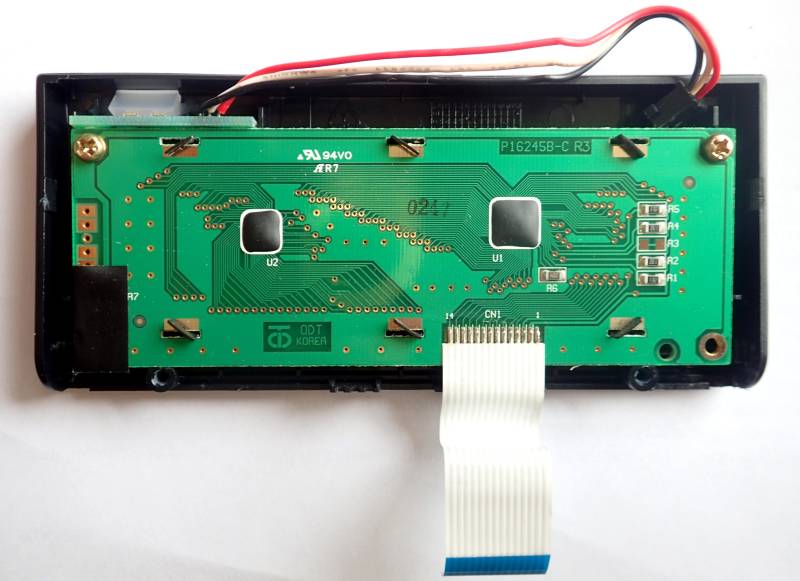

P16245B-C back

P16245B-C connector

Character set, NB first 8 characters are programmable and defined by the this test program:

P16245B-C character set
P16245B-C character set
P16245B-C character set
P16245B-C character set
P16245B-C character set
P16245B-C character set
P16245B-C character set
P16245B-C character set

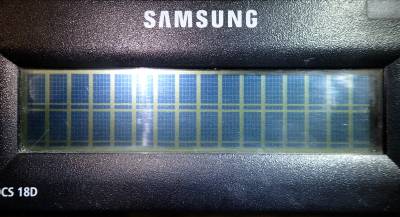

P16245B-C examples

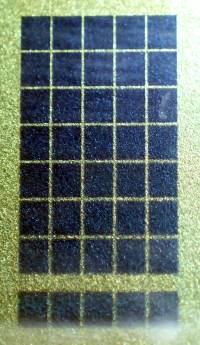

P16245B-C pixel layout

1) 5×7 with underscore
2) connect to potentiometer between Vcc and GND
