Published 15 Mar 2023

Arduino Shields


There are a huge number of Arduino shields, but some seem to be poorly documented and/or discontinued and it is hard to find a complete set of data on them and drivers for them.

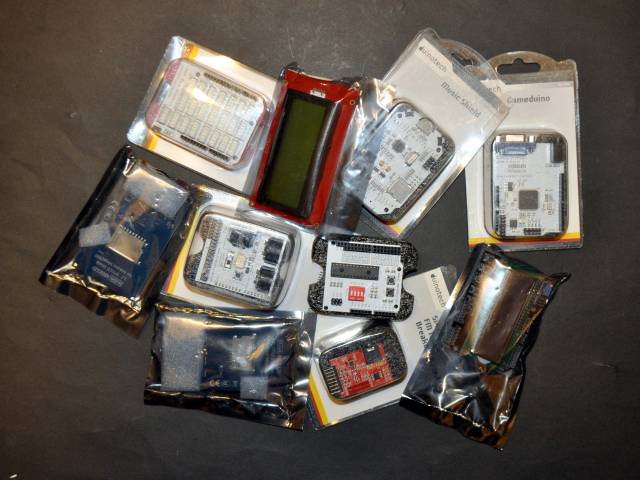

Arduino Shields

Overview

Arduino shields are generally mini circuit boards designed to plug directly on top of an Arduino micro-controller board and provide some extra functionality. Some are designed to plug into one specific Arduino model only, others might fit one or more models. A wide range is available, almost everything from fairly bare prototyping shields, switches, displays (eg LCD, OLED), networking shields (eg ethernet, wifi, bluetooth, infrared) to specific applications like music and FM tuners.

On the sidebar are a few that I've come across, and data about them and my experiences with them.

References and Additional Resources

If any referenced page no longer exists, try looking for its URL on http://archive.org.
